Item #HB-2A0A
IN STOCK
A 5-ported valve is simply a 4-way with two separate exhausts.
Requires Compressor
The price depends on the chosen options

As low as $2599

Customize 4-Way 5-Port Valve with 1/8 Inch Ports

Your Customization

4-Way 5-Port Valve with 1/8 Inch Ports

Summary
Final product price
description
A 5-way valve is simply a 4-way with two separate exhausts. This helps if you want to control speed of a cylinder in both directions by limiting the exhaust individually. Just use these like you would a 4-way. Port 1 is in, 2 & 3 are out, and 4 & 5 are exhaust. Comes with flying leads (wires) for electrical hookup. In and Out ports are threaded female 1/8". The two exhaust ports are female 1/8"

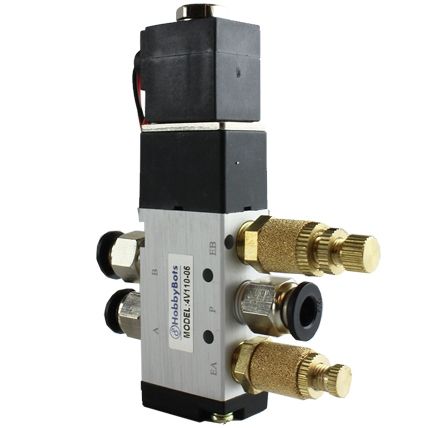

  • Please note that the pictures show fittings installed- these are not included.
  • Solenoids allow you to turn on/off air supply to pneumatic cylinders. The voltage given for each part is the voltage that will operate the solenoid.
  • We also offer Complete Kits with all tubing and fittings if you need an entire solution.
  • See our exhaust mufflers and silencers for use with our solenoids.
  • The solenoids do not come with power cables. They all have flying leads (wires) for attaching to a power cable (AC) or power supply (DC).
  • Coils operate at: 12VDC:2.5W, 24VDC:2.5W, 110VAC:2.5VA
  • Cv = 0.67
  • 25 SCFM @ 100PSI
  • 21 to 115 psi operating range
Support

Related Tech Notes, Docs, and Downloads

Customer Questions:

No Questions

Ask your question...

Asking about: 4-Way 5-Port Valve with 1/8 Inch Ports

Need Help?

For assistance with this product visit the Support & Training Center or Contact Us

Reviews
5
Review by
Works well, one of them when kaput after a season
These of course are essential to your pneumatics system. Mine were used to switch air at around 30-40 psi. They were used to control the pneumatic pistons on the arms of a hanging skeleton in my front yard and worked great for that. After one Halloween season, I put them in storage and them pulled them out in February to do more work on the prop. However, one of the valves was not working at that point. It was still responding to the 12V, but it leaked continuously out of one of the exhaust ports. I may take it apart to see if it is fixable.
