4-Way 5-Port Valve with 1/4 Inch Ports
Summary
-
x
Final product price
Item #HB-2A0B
IN STOCK
A 5-ported valve is simply a 4-way with two separate exhausts.
The price depends on the chosen options
As low as $3315
description
A 5-way valve is simply a 4-way with two separate exhausts. This helps if you want to control speed of a cylinder in both directions by limiting the exhaust individually. Just use these like you would a 4-way. Port 1 is in, 2 & 3 are out, and 4 & 5 are exhaust. Comes with flying leads (wires) for electrical hookup. In and Out ports are threaded female 1/4". The two exhaust ports are female 1/8"

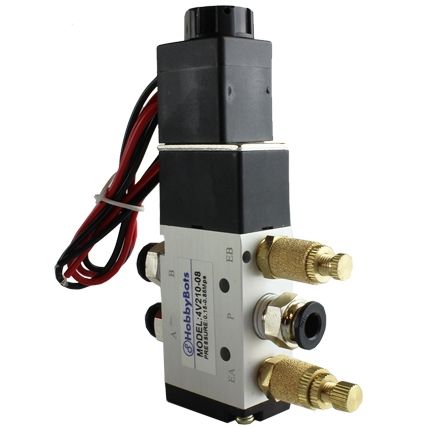

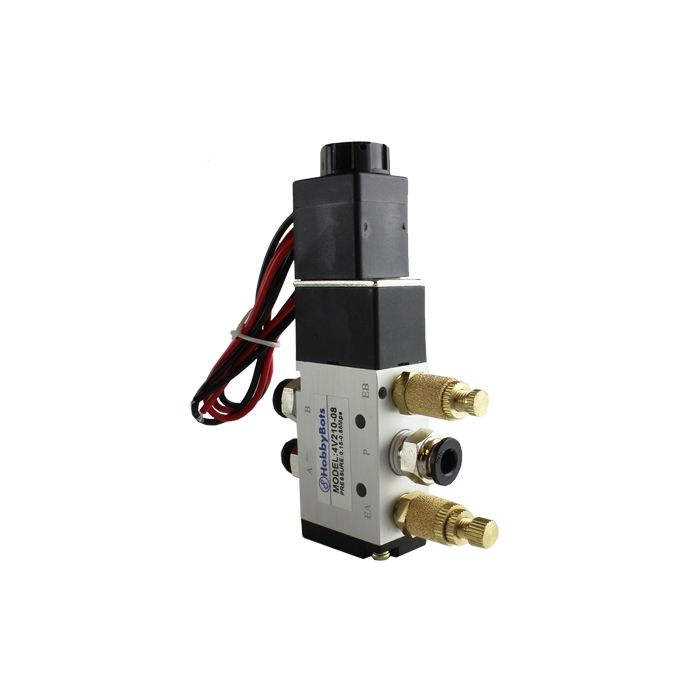

- Please note that the pictures show fittings installed- these are not included.
- Solenoids allow you to turn on/off air supply to pneumatic cylinders. The voltage given for each part is the voltage that will operate the solenoid.
- We also offer Complete Kits with all tubing and fittings if you need an entire solution.
- See our exhaust mufflers and silencers for use with our solenoids.
- The solenoids do not come with power cables. They all have flying leads (wires) for attaching to a power cable (AC) or power supply (DC).
- Coils operate at: 12VDC:6W, 24VDC:6.5W, 110VAC:6.5VA
- Cv = 0.89
- 53 SCFM @ 100PSI
- 21 to 115 psi operating range
