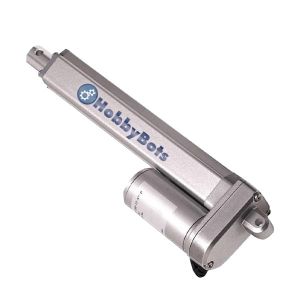

This method requires a 12vDC linear actuator that does not draw more than 5amps.

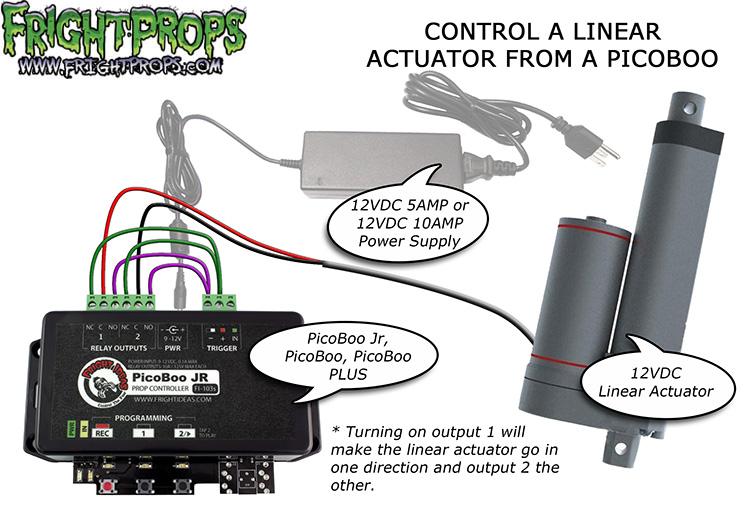

To program press REC on the PicoBoo. Press output button 1 to make the actuator go one direction and button 2 to make it go the other direction. Pressing both buttons will do nothing. Press REC when done recording.
Wires shown in various colors only for clarity. Any color may be used.
This data applies to all of our controllers that contain relays.
WARNING: HYDRAULIC AND PNEUMATIC POWER SYSTEMS CAN FAIL THROUGH MISUSE, AGE OR MALFUNCTION. THE SYSTEM DESIGNER
IS WARNED TO CONSIDER THE FAILURE MODES OF ALL COMPONENTS USED IN THE DESIGN AND ENGINEERING OF ALL SYSTEMS AND TO PROVIDE ADEQUATE
SAFEGUARDS TO PREVENT PERSONAL INJURY OR DAMAGE TO EQUIPMENT IN THE EVENT OF SUCH FAILURES
