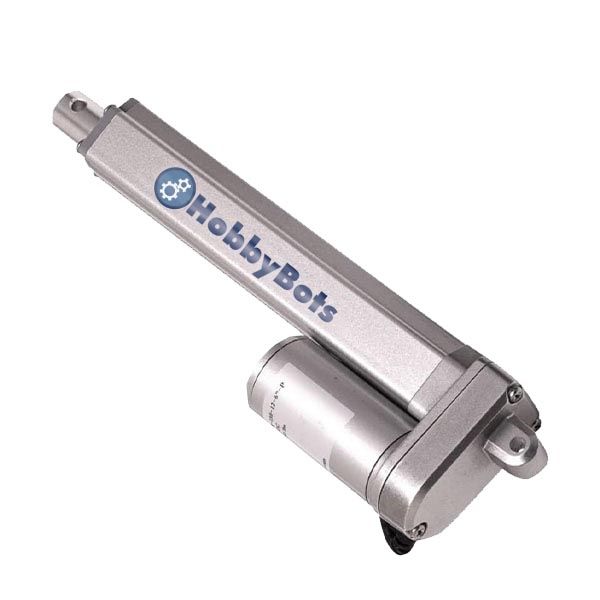

Standard Speed Linear Actuators

The FrightProps Standard Speed Linear Actuators are ideally suited to applications that require quite smooth linear operation. They come with built in limit switches (not movable), Aluminum case, two clevis mounting points, one on each end.

Features:

• Rugged compact design for universal hardy applications. These units are smaller than other actuators for the same force output
• Metal Alloy Casing, for any Super Duty usage, utilizing a completely sealed enclosure, ready to be deployed in any application.
• Internal limit switches automatically shut off the unit at the end of the stroke - This protects you and your equipment from possible damage.
• Worm gear drive system for quiet smooth operation.
• 2" stroke increment range of stoke options up to 24" stroke, gives you more flexibility.
• Optional Hall sensor feedback built-in. If you want to use it, ignore if you don't need it. 3 wires for the Feedback are included on all these models (black, white, and red).
• Actuator wiring is simple. 2 wires (Brown & Blue) for the motor. Reversing polarity changes the direction of operation. 4 wires (Red/Yellow/Black/White) for the sensor.
• IP66 rated  – this offers dustproof and water-resistant

Specifications:

• Dynamic Force: 220 lbs
• Static Force: 220 lbs
• Speed ("/S) No Load: 15mm/sec (0.59")
• Duty Cycle:25% at 100% load, 50% at 25% of load.
• IP Rating: IP66
• Sound Rating: Quiet, only 50 dB
• Input: 12v DC
• Max Draw:5.5 amps
• Clevis End:8.2mm diameter on each end
• Operational Temperature: -40°C to 65°C (-40°F/150°)
• Limit Switch:Built-in, non-adjustable.
• Safety Certifications: CE

Dimmensions:
