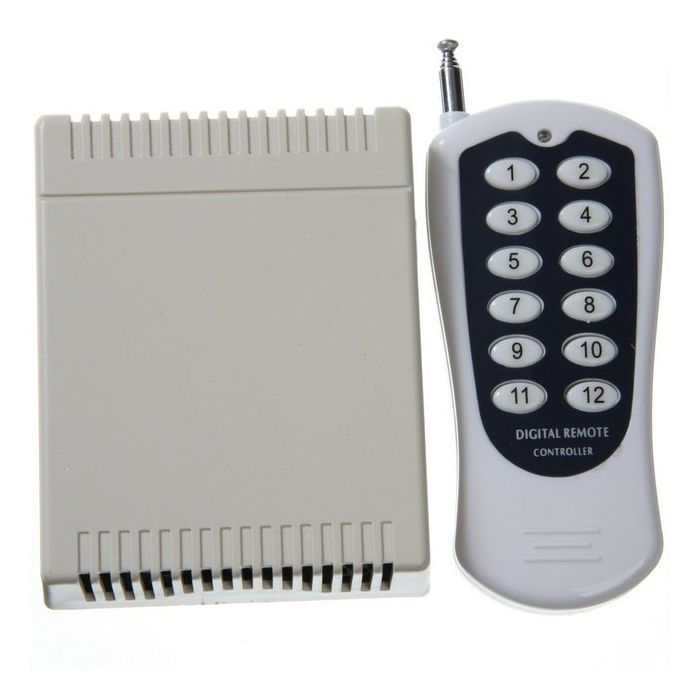

Wireless Trigger (12-Relay)

SKU
HB-1ABR
In stock
Remotely trigger up to TWELVE devices.

As low as $49.99

Customize Wireless Trigger (12-Relay)
Your Customization
Wireless Trigger (12-Relay)
Wireless Trigger (12-Relay)

In stock

$49.99

Summary
    The module has twelve relays (7 amps max per) on screw down terminal blocks. PicoBoos, BooBoxs, lights, or any other device that can be triggered from a relay can now be activated wirelessly. Use with all FrightProps controllers and audio players or your own devices with trigger input. Package Includes:

    • 1 x Control Switch Board with twelve 7-amp relays on it
    • 1 x Remote Control with twelve buttons

    Requires a 12VDC Power Supply. If you are powering from another device (such as a PicoBoo) then you will not require one as you can draw power from that.

    Remote Control:

    • Operating Voltage: 12V
    • Operating Current: ≤10mA
    • Frequency: 310MHz, 315MHz, 418MHz, 433MHz
    • Transmitting Power: 10mW
    • Transmitting Distance: 100M
    • Encoding Type: PT2262, EV1527, HCS300 rolling code
    • Control Switch System:
    • Operating Voltage: DC12V
    • Quiescent Current: ≤6mA
    • Operating Frequency: 315MHz 433MHz
    • Receiver Sensitivity: -105dBm
    • Output Current: ≤10A
    • Size: 97 x 77 x 26mm / 3.81 x 3.03 x 1.02in(L x W x H)

    Please Note:

    • Actual antenna range will vary greatly depending on the installation and operating environment
    Write Your Own Review
    You're reviewing:Wireless Trigger (12-Relay)
    Your Rating
    Customer Questions
    With this wireless controller, do the buttons on transmitter act as off/on switch or momentary?

    The wireless unit is user configurable for momentary, latching, and signal interlock.

    • Momentary: The relay activates when the button is pressed and deactivates when released.
    • Latched: When button is pressed the relay stays on until the button is pressed again.
    • Signal Interlock: Flip flops between relays. For example: press A and relay A stays on even if A  is pressed again. Press B and then relay A turns off and B stays on. Then button B does  nothing until button A is pressed. And so on.

    Are these waterproof, can it be out in the rain?

    These are not waterproof and must be protected from all moisture.

    What kind of battery used in the remote and can it be replaced?

    The battery is a “23A” and is replaceable.
