Wireless Trigger (1-Relay)
Summary
-
x
Final product price
Item #HB-1ABV
IN STOCK
Remotely trigger up to ONE device.
The price depends on the chosen options
As low as $1999
description
Programming:
The remote must be trained to the base unit for these to function. Several modes of operation are available. To train the remote, first make sure the remote has a battery in it (remotes are sometimes shipped without batteries). With power to the unit follow these steps to train the base station to the remote:
Clear Memory:
- Press the learning button 8 times (on the receiver). The LED will flash a few times.
Momentary:
- Press the learning button 1 times (on the receiver).
- Hold the A button until the LED blinks
Toggle:
- Press the learning button 2 times (on the receiver).
- Hold the A button until the LED blinks
Latched:
- Press the learning button 3 times (on the receiver). Wait 3 seconds;
- Hold the A button until the LED blinks
Delay Mode:
- Press the learning button 4 times(or 5/6/7 times) on the receiver.
- 4 times = 5 second delay, 5 times = 10 second delay, 6 times = 15 Seconds
- Hold the A button until the LED blinks.
The module has one relay (10 amps max) on screw down terminal blocks. PicoBoos, BooBoxs, lights, or any other device that can be triggered from a relay can now be activated wirelessly. Use with all FrightProps controllers and audio players or your own devices with trigger input.

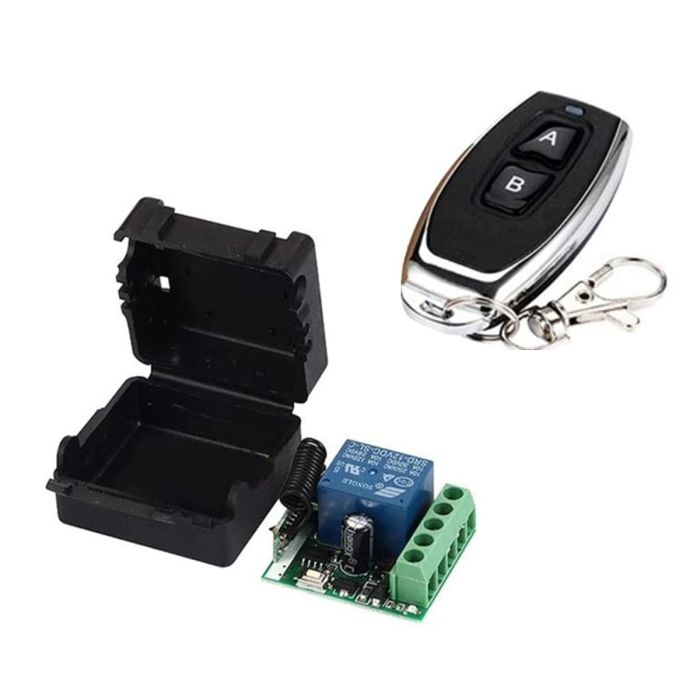

Package Includes:
- 1 x Control Switch Board with one 10-amp relay on it
- 1 x Remote Control with two buttons
Requires a 12VDC Power Supply. If you are powering from another device (such as a PicoBoo) then you will not require one.
Specifications:
-
DC 12V 10A 1-channel
Receiver Operating voltage: DC 12V
Input / output voltage: 1 ~ 250V
Max current: 10A
RF frequency: 433MHz
Support encoding: 1527 learning code
Reception range: The open space is more than 50 meters
Quiescent current: <5 MA
Remote control battery: 1 x 3 V CR2032 button batteries
Remote storage: 20
Please Note:
- Actual antenna range will vary greatly depending on the installation and operating environment
- All units use the same frequency and there is not a way to change that. What this means is that two units cannot be used in the same location and be triggered separately
