Premium RFID Prop Trigger

FEATURES THREE SELECTABLE OPERATING MODES:

Normal Mode:

Relay stays ON while FOB is near sensor. When FOB is removed, relay turns OFF.

Toggle Mode:

Each time a FOB is detected the relay switches state: 1st Scan = ON, 2nd Scan = OFF, 3rd Scan - ON, etc...

Delay Mode

When FOB is detected relay activates for 10 seconds, then turns off.

Features:

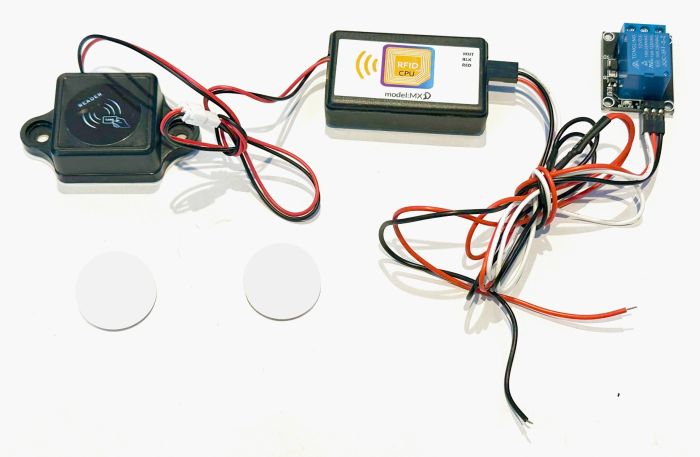

• RFID unit with relay and two RFID discs.
• Operates on 12v DC
• Operating frequency 125KHz
• Sensor can be mounted in wood or behind glass or plastic and will still function perfectly.
• 10 amp relay triggers when unit is activated.
• Sensing range is about .75"

To Flash New Keys:

1. Ensure the unit is powered on.
2. Remove the cover from the yellow box.
3. Press the button on circuit board.
4. Tap the fobs or cards you want to flash onto the reader.
5. Press the button again to finalize.

Remove Keys:

1. With the unit powered on, press and hold the button for 3 seconds.
2. Tap the cards or fobs you want to remove.
3. Press the button again to finalize

Wipe All Keys:

1. Make sure the unit is powered off.
2. While powering on the unit, press and hold the button.
3. Once the unit powers up all stored key codes will be erased.

To change the function of the Premium RFID Prop Trigger follow these steps:

     1. Open the black box containing the circuit board
     2. You will see a small box with two toggle switches on the circuit board
     3. To switch to Delay Mode, flip Switch 1 to the ON position
    To switch to Toggle Mode, flip Switch 2 to the ON position
    4. Power the unit on (the unit must be power cycled for the switch position      to be registered).
