Dual Speed High Torque Prop Motor (MOT1)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • FrightProps High Torque Prop Motor Introduction
  • Parking Motor and Picovolt Controller Demonstration
  • FrightProps Motor Mechs and Technology
  • FrightProps Motor Power Supply Tutorial
  • Dual Speed High Torque Prop Motor (MOT1)
  • Dual Speed High Torque Prop Motor (MOT1)
  • Dual Speed High Torque Prop Motor (MOT1)

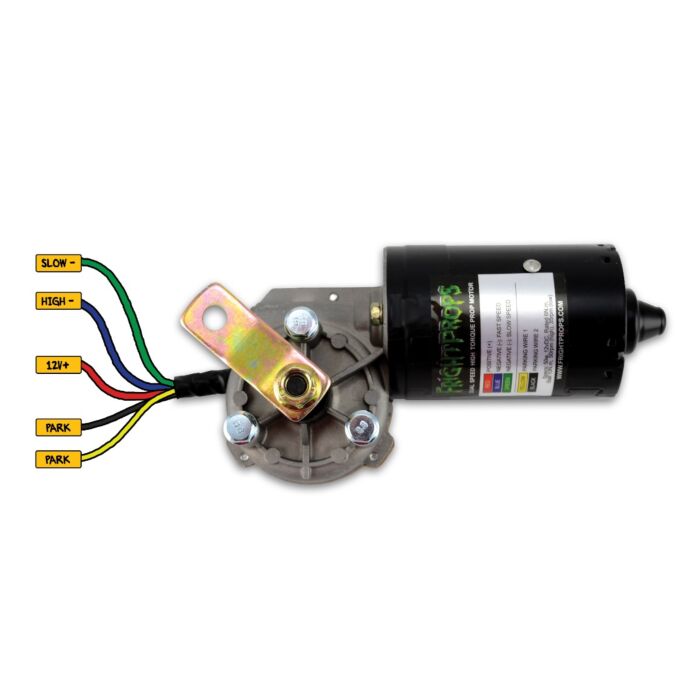

Dual Speed High Torque Prop Motor (MOT1)

High Torque Prop Motor - with Dual Speed Technology!

In Stock

From: $29.99

To: $169.96

Price as configured: $0.00

Additional Product Options

* Required Fields

Price as configured: $0.00


Our awesome motors just got, well,AWESOMER! Our standard motors now include a parking feature at no additional charge! Of course, you'll need a controller, like the revolutionary PicoVolt, to take advantage of the parking feature.

Don't need parking? Then just ignore the extra wires :) Our motors will still function just like they always have, just with the added benefit of a parking feature if you need it.

Our High Torque Motors have the power to drive the most demanding props! We have everything required to get you started in the fun world of motorized props!

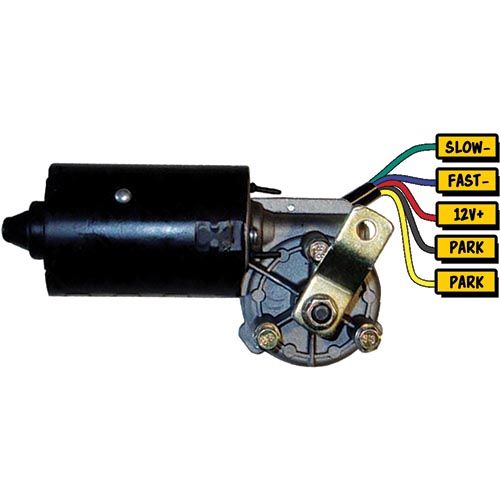

Why are our prop motors superior to other's? Our motors have power wires already installed, no strange connections. Change speed by simply switching the colored wires! Our motors are very high torque (power). Our included shaft arm has no strange ball end that must be "machined" off.

In short: Yes... our motors ROCK!!!

More about the new parking feature:

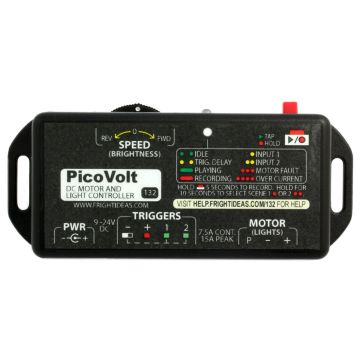

A new revolution in prop motor technology! Our best-selling MOT1 model still features two selectable speeds and runs off of 12v power. However, it now comes with the additional feature of being able to stop on a dime at an exact factory set position. To use this feature the motor needs to be used with our PicoVolt or PicoBoo controllers.

NOTE: In order to park the motor a controller must be used. Our PicoVolt controller was designed to work with the parking motor. Or you can use any one of our controllers with at least 3 relays required (such as the PicoBoo Plus and PicoBoo MAX). See our tech notes on wiring the motor to controllers.

What's Included:

  • Motor (1)
  • Shaft Arm with Mounting Nut (1)
  • Mounting Bolts (3)
Technical Specifications:
  • 50W,12vDC
  • Rated torque: 53 in-lb (6N.m)
  • Stall torque:177 in-lb (20N.m)
  • Unload high speed:50rpm,1.5A (@ 12vDC)
  • Unload low speed:35rpm,1.0A (@12vDC)
  • Maximum wattage is 50W (about 4amps @ 12vDC)
  • Noise:<50dB

      Motor Speeds (approximate)

      Power Supply

      Motor Wire



      Low (Green)

      35 RPM


      High (Blue)

      50 RPM


      Low (Green)

      15 RPM


      High (Blue)

      20 RPM

      Finger-Hand Hazard!


Related Products



Product Faqs

Ask a Question

  • Can this motor be used with a pulley?
    It potentially can but we do not carry or have a source for pulleys that fit the motor.
  • Can the nut on the shafts be taken off for other possibilities? Like making the motor orbit, like an old record player?
    Yes, the motor comes with the nut and shaft arm unattached.
  • How much weight can this motor lift?
    That is not a specification that is easily answered because it depends on how the motor is used and powered. The rated torque is : 53 in-lb (6N.m) and stall torque is 177 in-lb (20N.m).
  • Is this a brushless or brushed motor?
  • What is the diameter of the output shaft?
    The dimensional drawings contain this information.
  • Will these motors stand up to constant use? Like 8 hours a day?
