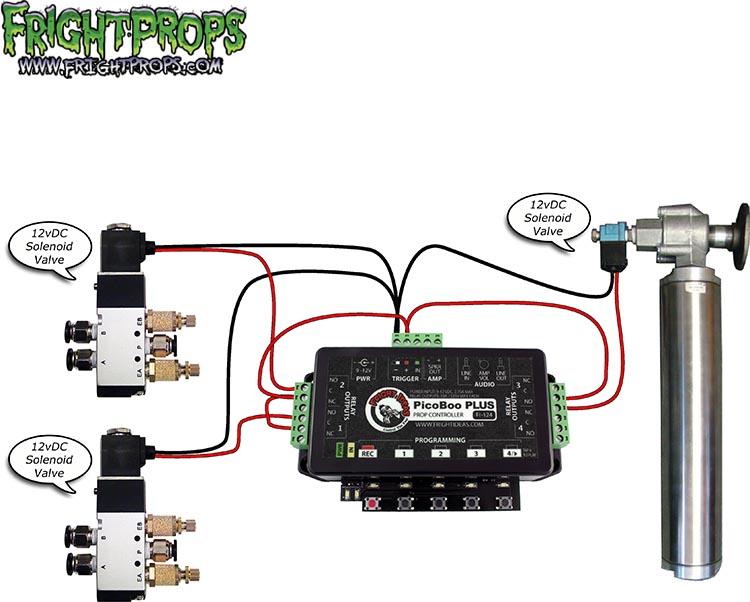

This information applies to the PicoBoo Jr (103), PicoBoo (104), and PicoBoo Plus.

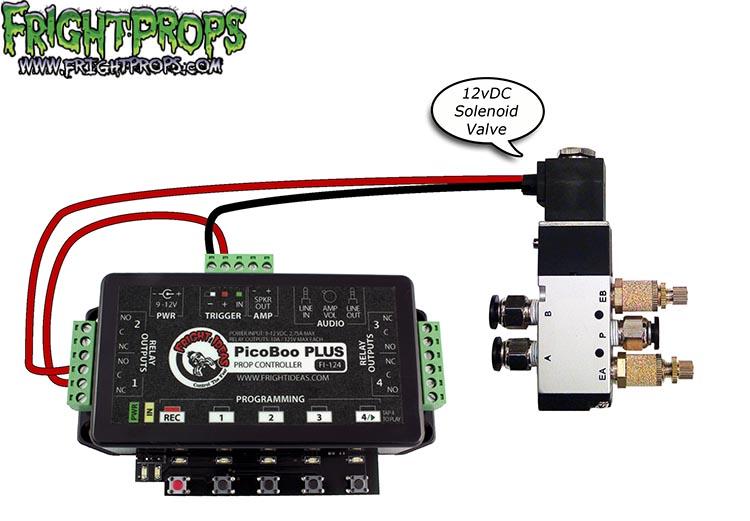

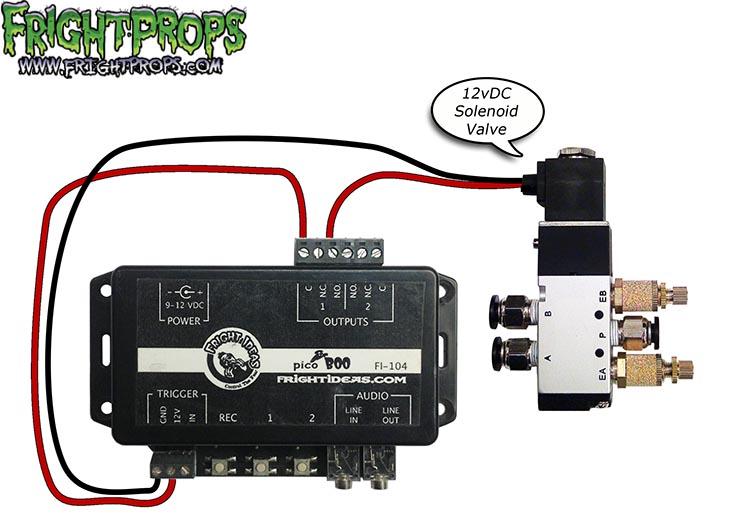

Diagram shows a 12VDC solenoid but also applies to other 12VDC devices such as LED lights.

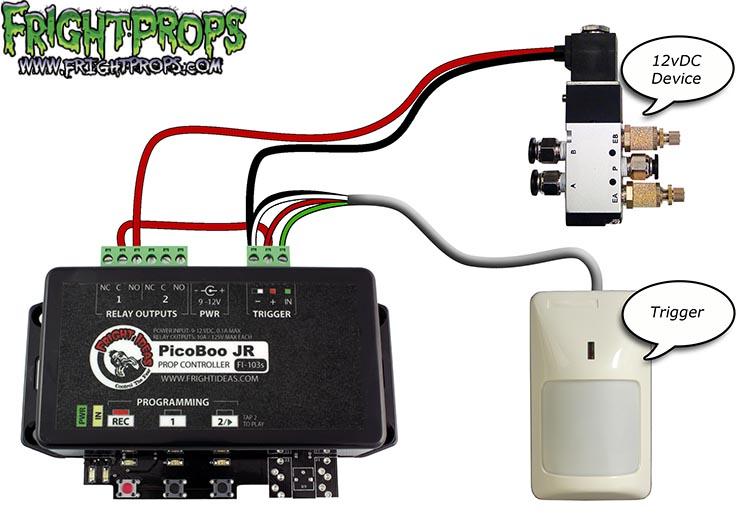

The wiring is slightly different as shown in this diagram:
If you also need to use a trigger simply wire it as you normally would. It will share the negative (-) and possitive (+) terminals as shown.

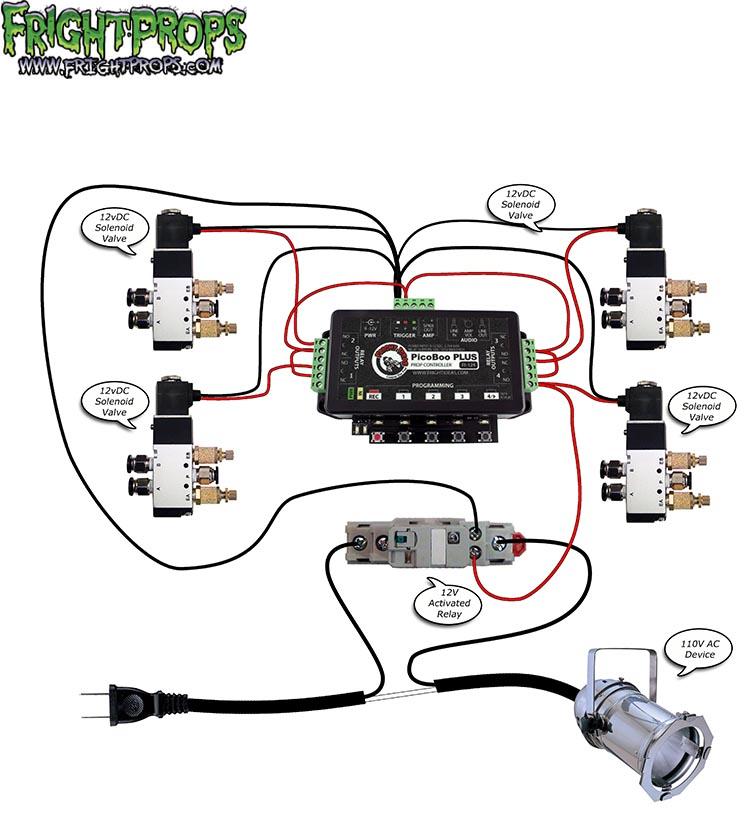

Here is how to wire up a DC device on output 1 and an AC device on output 2 along with a motion sensor.
WARNING: HYDRAULIC AND PNEUMATIC POWER SYSTEMS CAN FAIL THROUGH MISUSE, AGE OR MALFUNCTION. THE SYSTEM DESIGNER IS WARNED TO CONSIDER THE FAILURE MODES OF ALL COMPONENTS USED IN THE DESIGN AND ENGINEERING OF ALL SYSTEMS AND TO PROVIDE ADEQUATE SAFEGUARDS TO PREVENT PERSONAL INJURY OR DAMAGE TO EQUIPMENT IN THE EVENT OF SUCH FAILURES
