description
- Advanced Auto Water Refill System
- Multi-Stage Humidity Control
- Complete Fog and Fan Volume Control
- Optimized Heater Core for Continuous Operation
- Touch Screen LCD & DMX Control

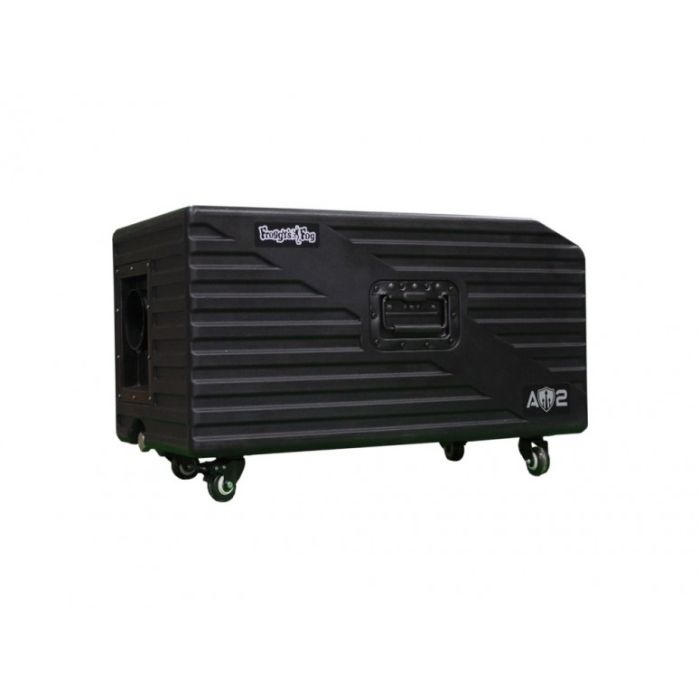

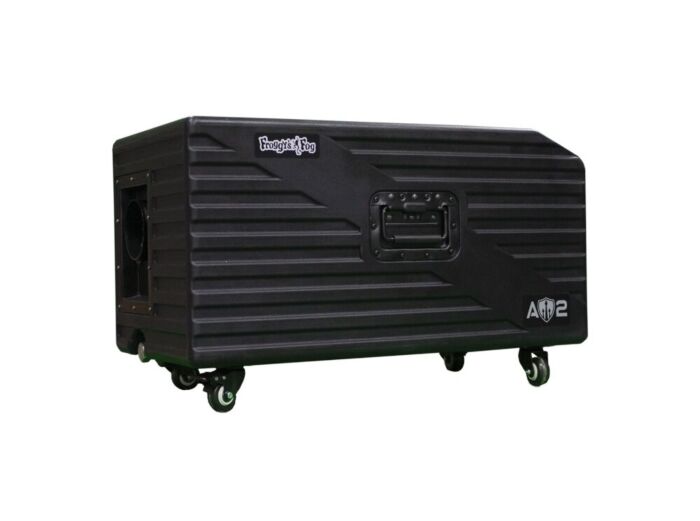

The Froggys Fog - Poseidon® Aqua 2 is an event-ready, Ultrasonic Low Fog Generator. It continuously creates high-output low-lying fog without the use of cryogenics, refrigeration plants, or dry ice. The advanced ultrasonic technology internally combined with traditional thermally-produced fog means that the ONLY expendables required are fog fluid, water, and electrical power. The rugged chassis is designed for heavy-duty applications such as touring and can endure the rigors of use in the most demanding of applications. With a simple, user-friendly LCD display, intuitive controls, and DMX onboard, the Poseidon Ultrasonic Low Fog Generator is ideal for any professional production, touring, themed entertainment, or theatrical application requiring voluminous low fog production that is quiet, efficient, and cost-effective.
ADVANCED AUTO WATER REFILL SYSTEM
Never worry about refilling your water tank! Simply connect the machine to a water supply with the included adapter, and the A2 will do the work for you.
MULTI-STAGE HUMIDITY CONTROL
Take complete control of your fog to mist ratio with adjustable humidity. This allows you to dial in your perfect settings for your fog effects.
COMPLETE FOG AND FAN VOLUME CONTROL
Adjustable fog output and fan speed allows for the perfect speed of output and thickness of fog effects for any application.
GRAVITY FED WATER RESERVOIR (NO WATER PUMP) WITH DRAINS
This gravity fed system allows for greater reliability and simplicity for this machine. When transporting, a drain system aids in more convenient, mess-free travel.
AUTO SENSES LOW WATER & LOW FOG FLUID
No need to worry about the Poseidon machines running dry, the A2 has sensors built-in to detect low fluid levels.
LOCKING SEETRONICS POWER CONNECTOR
This locking power connection ensures that your machine will stay running thorughout operation. Loose connections and pulled power cables are no problem for the Poseidon lineup.
UNIQUE WATER RECAPTURE DESIGN MINIMIZES CONDENSATION
The A2 not only operates extremely efficiently; it does so with very little mess!
RUGGEDIZED SINGLE PIECE POLYMER CHASSIS
This machine is tough enough for any application. There's no need to worry about scratches and dings here!
AUSTENITE WELDING AND ANTI-CORROSIVE PRIMER
Humid and wet environments are no problem for the A2. While other machines may rust, the Poseidon machines are quite comfortable with water.
OPTIMIZED HEATER CORE FOR CONTINUOUS OPERATION
No need to stop the fun to reheat! These machines are designed to run indefinitely.
ADVANCED FOG EXPANSION CHAMBER DESIGN
Complete atomization of the fog means this machine runs extremely efficiently. No need for frequent refills!
BUILT-IN LCD CONTROL PANEL
Easy to see, easy to use. Why would you settle for less?
5-PIN AND 3-PIN DMX ONBOARD
No matter what your DMX preference is, the A2 will integrate seamlessly with your system.
SPECIFICATIONS
Physical
- Length: 29 in. Box: 34 in.
- Width: 15.4 in. Box: 18.1 in.
- Height: 17.7 in. Box: 20 in.
- Net Weight: 71 lbs Gross Weight: 80 lbs
Performance
- Fluid consumption (100%): 25 ml/min
- Maximum operating time, maximum output: 32 min
- Ready time: 4 Min
Control and Programming
- Control options: DMX, LCD Control Panel
- Fog and Fan output control, 0-100%
- DMX channels: 3
- External fluid control: Fluid sensing
Construction
- Housing: Polymer Cased Metal
- Color: Black
- Fluid pump: Dual oscillating piston, high pressure
- Fluid reservoir: .8 Gal. drop-in fog, 6 Gal. Water Tank
Installation
- Mounting: Level Surface
- Orientation: Horizontal
Connections
- AC Power: Seetronic Powerkon IP65
- DMX, link mode in/out: 3 and 5-pin locking XLR
Electrical
- US Model:AC power: 120 V, 60 Hz
- Main fuse: 15A, 250 V
- Typical power and current: 1700 W
- *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Included Items
- Fluid reservoir, .8 Gal Tank
- Power input cable: Seetronic® Powerkon IP65
Approved fluids:
