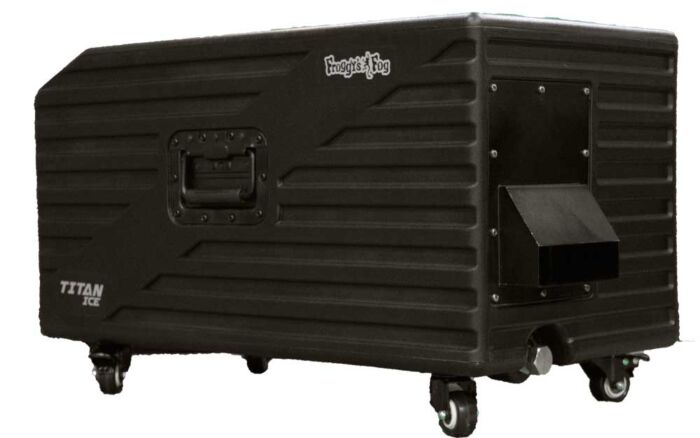

Titan Ice Ground Fog Machine - DMX - 1700 Watt

• 1700 Watt Heater Core with Hyper Heat Technology
• Large ICE Chamber for Super Low Ground Fog
• DMX with Backlit Digital Timer Controls
• Included Wireless Remote
• 2 Year Warranty

The Titan Ice combines our best fog machine technology with the convenience of an integrated fog chiller. Using the power of ice to chill our specially formulated low-lying fog fluids, the Titan Ice creates an amazing, thick blanket of fog that is great for eerie graveyard effects, motion picture usage, plays and more!

EFFICIENT AND POWERFUL

Robust metal cases house the most efficient heater cores available giving you tremendous output. The Titan ICE features a 1700W core and a spacious Ice chamber to lay down a super thick carpet of fog!

BACKLIT DIGITAL LCD

LCD controls and timer functions allow for easy adjustment in the dark and simple menus that put an end to frantically studying the user manual like prepping for a college final.

NEUTRIK POWERCON TRUE1

A locking power cord connector that can be removed under live or load.

DMX CONTROL

DMX input/output gives full board control for integration into more intricate scenes. You can also activate the fog machine simply with the included wireless remote. All our titan series foggers include a 2 year warranty on parts and service.

SPECIFICATIONS:

Physical:

• Length: 31 in. Box: 34 in.
• Width: 15.4 in. Box: 18.1 in.
• Height: 17.7 in. Box: 20 In.
• Net Weight: 71 lbs. Gross: 80 lbs.

Performance

• Fluid consumption (100%): 25ml/min
• Maximum operating time, maximum output: 200 Min.
• Ready time: 4 Minutes
• Continuous Output: Yes

Control and Programming

• Control options: DMX, LCD Menu, Wireless on/off remote
• Control parameters: Continuous or timer-controlled output
• Variable output control, 0-100%
• DMX channels: 2
• External fluid control: Fluid sensing
• DMX compliance: ANSI E1.11 - USITT DMX512-A
  RDM compliance: ANSI/ESTA E1.20 RDM

Construction

• Housing: Polymer-Cased Metal
• Color: Black
• Fluid pump: Dual oscillating piston, high pressure
• Fluid reservoir: 5L drop-in reservoir
• Remote Control: Wireless

Installation

• Level Surface

Connections

• AC Power: IP65 Rated Seetronic Powerkon
• DMX, link mode in/out: 3 and 5-pin locking XLR

Electrical

• US Model:AC power: 120 V, 60 Hz
• Main fuse: 15A, 250V
• IP Rated Power, DMX, and Breaker Ports
• Typical power and current: 1700 W @ 100%
• *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Included Items

• Fluid reservoir, 5L Tank
• Power input cable, US, 6 ft, IP65 Rated Seetronic Powerkon Power Cable
