Activating PicoBoos from Live Voltages

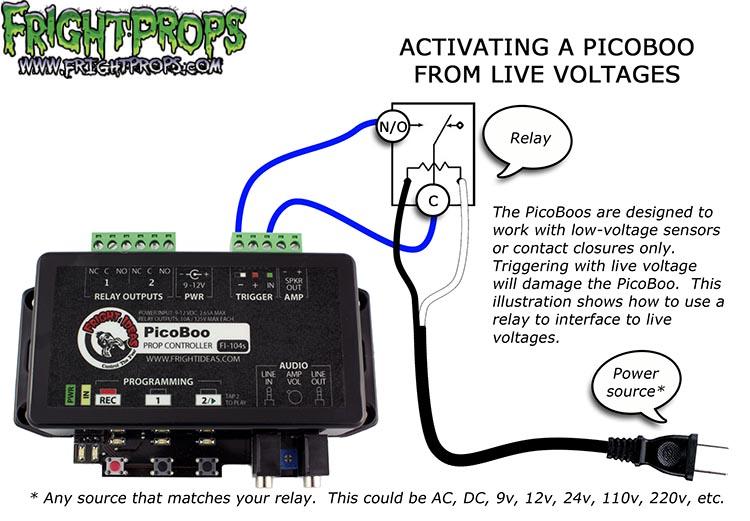

The PicoBoos are designed to work with low-voltage sensors or contact closures only. Triggering with live voltage will damage the PicoBoo. This illustration shows how to use a relay to interface to live voltages.
