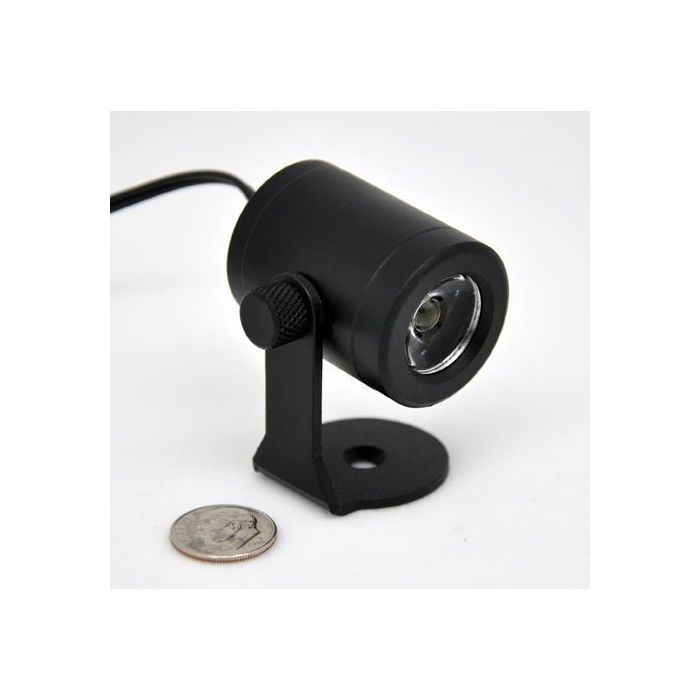

Precision Z Spotlight

In stock
The Precision Z spotlight is bright enough to illuminate over 100ft in darker environments, it emits a very strong and saturated color.
Customize Precision Z Spotlight
Your Customization
Precision Z Spotlight
Precision Z Spotlight

In stock


    100% of 100
    The Precision Z Spotlight produces a concentrated point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor and underwater applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.


    • Perfect for space constrained applications
    • Available in 7 colors: red, green, blue, amber, cool white, warm white, and ultraviolet
    • 1W LED with 95% energy savings compared to 20W halogen lamp
    • Low voltage and minimal heat for improved safety over incandescent sources
    • Internal constant current driver gives highly efficient and consistent output
    • Dimmable using PWM power input from external constant voltage dimmer (10%-100%)
    • Easy installation and reconfiguration
    • Dual polarity input
    • Minimal maintenance required with over 50,000 hour lamp life
    • Indoor and outdoor use


    • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
    • Museums displays (wall mounted artwork and display cases)
    • Theater and stage accent lighting
    • Mobile displays
    • Retail spaces
    • Architectural accent lighting
    • Machinery


    Fixture Wattage 1.5W
    LED Wattage 1W
    Input Voltage 9-15VDC (12VDC nomical)
    Current Draw 125mA @ 12VDC
    Power Supply for use with class 2 transformer or battery
    Beam Angle 11 degrees
    Field Angle 32 degrees
    Ingress Protection IP68-3ft
    Material Anodized aluminum
    LED Edison A
    Certifications UL and CE
    Power Connector 2.1mm DC jack with screw terminal adapter

    Product Details
    Product Name: Wavelength Color Temp CRI
    Precision Z Spot – Red 620nm-630nm / /
    Precision Z Spot – Green 515nm-535nm / /
    Precision Z Spot – Blue 455nm-475nm / /
    Precision Z Spot – Amber 585nm-595nm / /
    Precision Z Spot – Cool White / 6500K 70
    Precision Z Spot – Warm White / 2700K 80 typical, 90+ available by spec
    Precision Z Spot – Ultraviolet 395nm-405nm / /

    Cool White Output
    Distance Center Beam Beam Width
    1.0m (3.3ft) 883lx (82.0fc) 0.2m (0.7ft)
    2.0m (6.6ft) 221lx (20.5fc) 0.4m (1.3ft)
    3.0m (9.9ft) 100lx (9.3fc) 0.6m (2.0ft)

    Warm White Output
    Distance Center Beam Beam Width
    1.0m (3.3ft) 517lx (48.0fc) 0.2m (0.7ft)
    2.0m (6.6ft) 132lx (12.3fc) 0.4m (1.3ft)
    3.0m (9.9ft) 65lx (6.0fc) 0.6m (2.0ft)
    Write Your Own Review
    You're reviewing:Precision Z Spotlight
    Your Rating
    Customer Questions
    What power supply is required if I want to use two of the Precision-Z?

    A single 12V 1Amp power supply can power up to about eight Precision-Z lights

    How much do these weigh?

    Each Precision-Z weighs about 2.7 ounces. This includes the fixture, wire, and connectors that come with it.

    Can you wire a Precision Z, Precision Alpha, or Nano directly to a PicoBoo?

    Precision X Y and Z Series Spotlights and Floodlights

    Precision X Y and Z Series Spotlights and Floodlights

    Demonstration of LED light brightness
