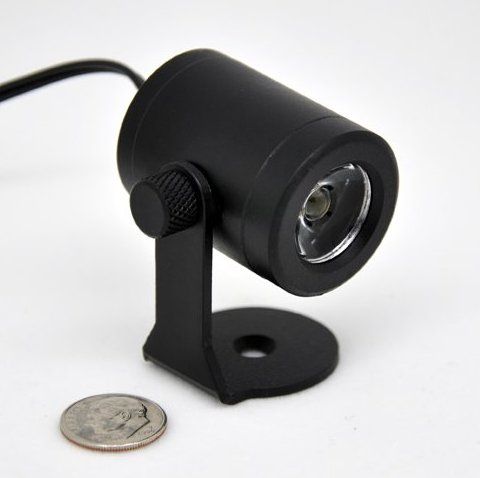

Precision Z Floodlight
Summary
-
x
Final product price
Item #GT-PZF
IN STOCK
120 degree wide beam floodlight. The Precision Z Series produces point-source LED illumination equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package
The price depends on the chosen options
As low as $9499
description
The Precision Z Floodlight produces a soft point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor and underwater applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.
Product Details
Cool White Output
Warm White Output
Features
- Perfect for space constrained applications
- Available in 7 colors: red, green, blue, amber, cool white, and warm white
- 1W LED with 95% energy savings compared to 20W halogen lamp
- Low voltage and minimal heat for improved safety over incandescent sources
- Internal constant current driver gives highly efficient and consistent output
- Dimmable using PWM power input from external constant voltage dimmer (10%-100%)
- Easy installation and reconfiguration
- Dual polarity input
- Minimal maintenance required with over 50,000 hour lamp life
- Indoor and outdoor use
Applications
- Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
- Museums displays (wall mounted artwork and display cases)
- Theater and stage accent lighting
- Mobile displays
- Retail spaces
- Architectural accent lighting
- Machinery
Specifications
| Fixture Wattage | 1.5W |
| Input Voltage | 9-15VDC (12VDC nomical) |
| Current Draw | 125mA @ 12VDC |
| Power Supply | for use with class 2 transformer or battery |
| Beam Angle | 62 degrees |
| Field Angle | 84 degrees |
| Ingress Protection | IP68-3ft |
| Material | Anodized aluminum |
| LED | Edison A |
| Certifications | UL and CE |
| Power Connector | 2.1mm DC jack with screw terminal adapter |
Product Details
| Product Name: | Wavelength | Color Temp | CRI |
| Precision Z Spot – Red | 620nm-630nm | / | / |
| Precision Z Spot – Green | 515nm-535nm | / | / |
| Precision Z Spot – Blue | 455nm-475nm | / | / |
| Precision Z Spot – Amber | 585nm-595nm | / | / |
| Precision Z Spot – Cool White | / | 6500K | 70 |
| Precision Z Spot – Warm White | / | 2700K | 80 typical, 90+ available by spec |
Cool White Output
| Distance | Center Beam | Beam Width |
| 1.0m (3.3ft) | 66lx (6.1fc) | 1.2m (3.9ft) |
| 2.0m (6.6ft) | 15lx (1.4fc) | 2.4m (7.9ft) |
| 3.0m (9.9ft) | 5lx (0.5fc) | 3.6m (11.8ft) |
Warm White Output
| Distance | Center Beam | Beam Width |
| 1.0m (3.3ft) | 35lx (3.3fc) | 1.2m (3.9ft) |
| 2.0m (6.6ft) | 8lx (0.7fc) | 2.4m (7.9ft) |
| 3.0m (9.9ft) | 2lx (0.2fc) | 3.6m (11.8ft) |
