Nano Spot - Miniature Spotlights

SKU: HB-7B10
Illuminate only what you want to and keep those dark rooms dark!

In Stock

From: $5.99

To: $33.97

Price as configured: $0.00

Additional Product Options

* Required Fields

Price as configured: $0.00

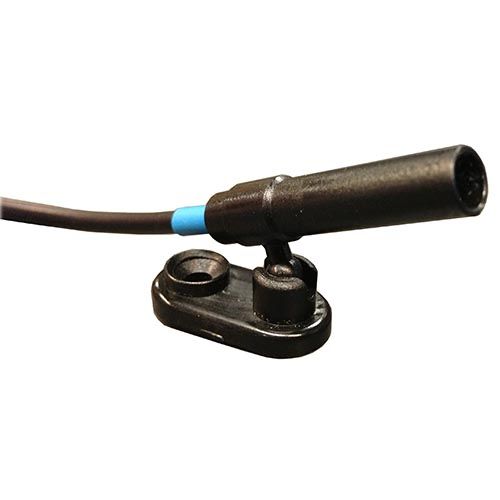

The industries smallest, toughest, and most optically pure miniature spotlight! Made from extremely tough poly-carbonate and custom designed 5mm LED’s that produce pure colors with no halos! These tiny spotlights are perfect for illuminating specific objects in the dark without lighting the entire room. Keep those dark rooms dark while still illuminating creepy things lurking in the shadows!

  • Integrated "snap on" swivel mount allows for easy adjustments and endless mounting possibilities
  • Available in 6 different colors; Cool White, Warm White, Amber, Blue, Green, and Red.
  • Comes with a 15" cord that contains positive and negative wires to attach to a regulated 12V DC power supply
  • The Nano Spots require a 12V power supply and each uses approximately 20mA (.24w ~ 1/4Watt) of power. Our 12V 1A power supply can power up to 33 Nanos, 12V 5A up to 166 Nanos, and 12V 10A up to 333 Nanos.
  • Each Nano outputs approximately 6 to 8 lumens of light
  • Water resistant (not IP rated)


Related Products

Nano Spot: 100 Pack

Nano Spot: 100 Pack

Nano Spot: 50 Pack

Nano Spot: 50 Pack

Product Faqs

Ask a Question

  • What is the approximate expected Lamp Life of the Nanos (in hours)?
    Approximately 50,000 hours.
  • Can the Nano Mini Spotlights be used outdoors?
    They can be used outdoors but should be protected from water.
  • Are the nano's PWM dimmable?
  • What is the approximate color temperature of the warm white, and the cool white Nano?
    Approximately 3000k for warm and 6500k for cool.
  • How many of the the Nano's can you run off of a 12v DC 2.0A power supply?
    About 60.
  • What is the I.P. Rating for the Nanos? (water resistant? waterproof? damp location?)
    There is no IP rating. They are water resistant.
  • What are the lumens of your nano spots?
    Each Nano outputs approximately 6 to 8 lumens of light.
  • What is PWM?
    PWM stands for “Pulse Wave Modulation”. The technology is used to control dimming with LED lights. In some cases you can dim LED lights by reducing voltage but a better way (and the only way with some LEDs) is to keep the voltage constant but “pulse” it. That’s what PWM does… it pulses more frequent (bright) or less frequent (dim) 12V voltage to the LED. We offer several controllers based on PWM technology:


    Dimmer Controller for LED lighting

    DarkBox Flicker:


  • Can you run a 12V LED light and also a 12V motor off of the same PicoVolt?
    Yes you can. The light and motor will activate at the same time.
  • What is the diameter of the projected light at a distance of 5 feet?
    It varies somewhat by color, the warm white spread is about 3 feet at a 5 foot distance.
  • Are these adjustable to give a flood pattern versus spotlight?
    They are spot lights only and are not adjustable at all.
  • Is it possible to order the Nano Spot with a UV LED?
    No, there is no UV version of the Nano.
  • Can you wire a Precision Z, Precision Alpha, or Nano directly to a PicoBoo?
  • Is there a way to make the nano spotlights blink?
  • Does this plug into a standard household electrical outlet? Do I need anything else?
    Nano Spots require power from a power supply or directly from a controller.
  • What is the diameter of the nano spots?
    The barrel is .25" (1/4")
