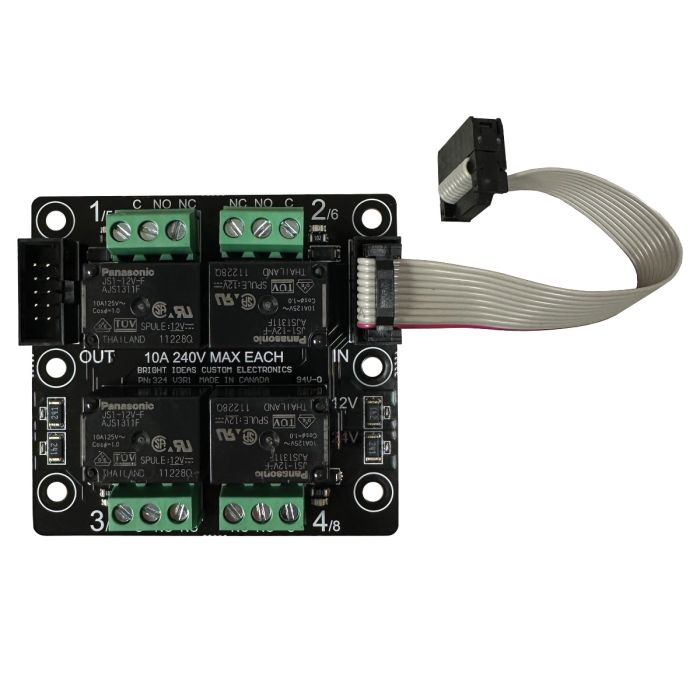

BooBox Relay Board (Quad)

SKU
HB-1AVA
Out of stock
Add four or eight 10 amp relays to your BooBox Flex, or FlexMax. Snaps into SnapTrack for easy mounting.
$0.00
This relay board connects to the expansion port of your BooBox. It will add four 10 amp relays, each with Normally Open and Normally Closed contacts.
  • Match the voltage to the power supply you are using with your controller (12v or 24v)
  • Each board has 4 x 10 Amp Relays on it
  • The 3 inch ribbon cable is included.
  • The relay or solid-state outputs on the controller itself can still be used when this board is connected, they will just turn on at the same time.
  • Two boards can be linked together to provide 8 relay outputs.
Write Your Own Review
You're reviewing:BooBox Relay Board (Quad)
Your Rating
Customer Questions
With just one quad relay board, how do you determine whether outputs 1-4 or 5-8 activate the relays?

The first relay board is always assigned to outputs 1-4. If there is a second relay board connected to the first one, that one uses outputs 5-8.
