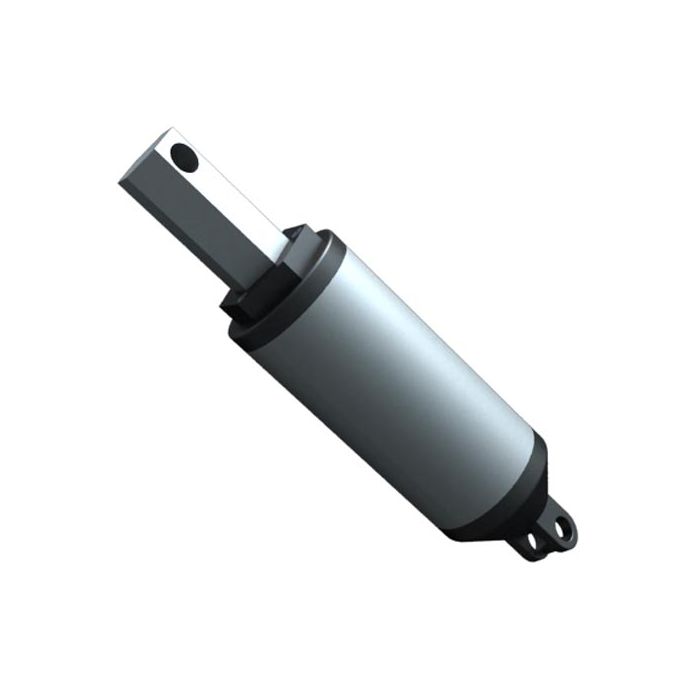

High Speed Linear Actuators
Summary
-
x
Final product price
Item #HB-5AJ1
IN STOCK
9" per second (no load) / 22 lbs. force.
The price depends on the chosen options
As low as $19999
description
The FrightProps High Speed Linear Actuators are built from a tubular aluminum alloy, light weight body, integrated with high speed planetary gear motor. The speed is 9" per second (230mm/sec) at no load with a force of 22lbs. The actuators are suitable for any type of indoor/outdoor application where high speed stroke is required and/or very low noise, measuring only 5dB above ambient. These actuators look great, are fast, versatile and quiet.
Specifications:
- Dynamic Force: 22 lb
- Static Force: 44 lb
- Speed ("/S): 4.5" (9" at no load)
- Current: 5A max
- Duty Cycle: 20% at 100% load, 50% at 25% of load
- IP Rating: 54
- Input: 12v DC
- Operational Temperature: -26°C/65°C (-15°F/150°)
- Limit Switch: Built-in (factory preset)
- Safety Certifications: CE, ROHS
- For power supply use our 12V-10Amp power supply
| Stroke | Retracted Length | Extended Length | Weight |
| 6" | 15.5" | 21.5" | 4 lbs |
| 12" | 21.5" | 33.5" | 4.8 lbs |
| 24" | 33.25" | 61.25" | 6.75 lbs |
