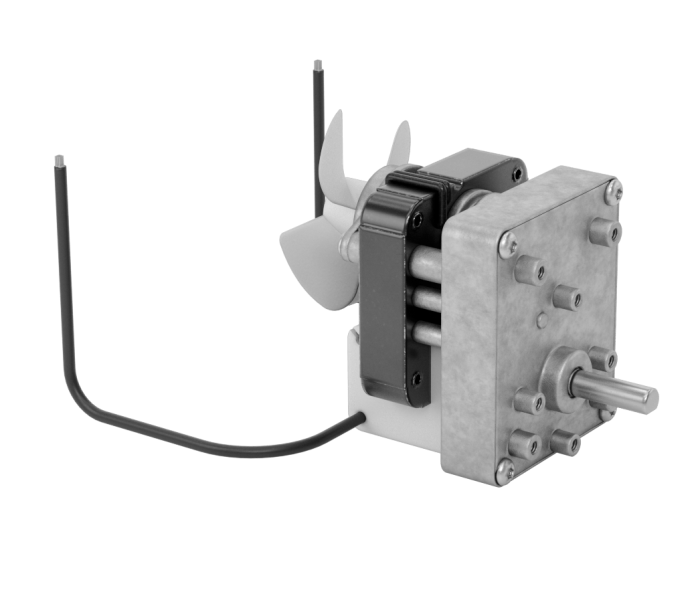

Fixed Speed AC Motor: 3RPM
Summary
-
x
Final product price
Item #FP-DCPM-B
IN STOCK
Low RPM fixed speed AC motor with high torque!
The price depends on the chosen options
As low as $11999
description
Need to move something at a steady slow speed? This motor is perfect for that! Great for moving heavier loads at low speed.
Specifcations
Power Source: Electric
Mounting Style: Face
Voltage: 115V AC
Electrical Phase: Single
Maximum Speed: 3 rpm
Torque @ Maximum Speed: 50 in.-lbs.
Motor Enclosure Type: Open
Power: 1/300 hp
Full Load Current: 0.4 A
Radial Load Capacity: 25 lbs.
Frequency: 50 Hz/60 Hz
Electrical Connection Type: Hardwire
Wire Connection Type: Wire Leads
Duty Cycle: Continuous
Overall
Length: 4"
Width: 2 1/2"
Height: 3"
Mounting Orientation: Any Angle, Horizontal, Vertical
Enclosure Material: Cast Zinc
Gear Type: Helical and Spur
Gear Material: Steel
Bearing Type: Plain
Plain Bearing Type: Sleeve
Overload Protection Type: Automatic
Shaft: 0.31" Diameter, 1" Length, 2.12" Center to Base, Parallel Orientation, D-Profile
Direction of Operation: Clockwise
Insulation: Class B, Maximum Temperature 266° F
