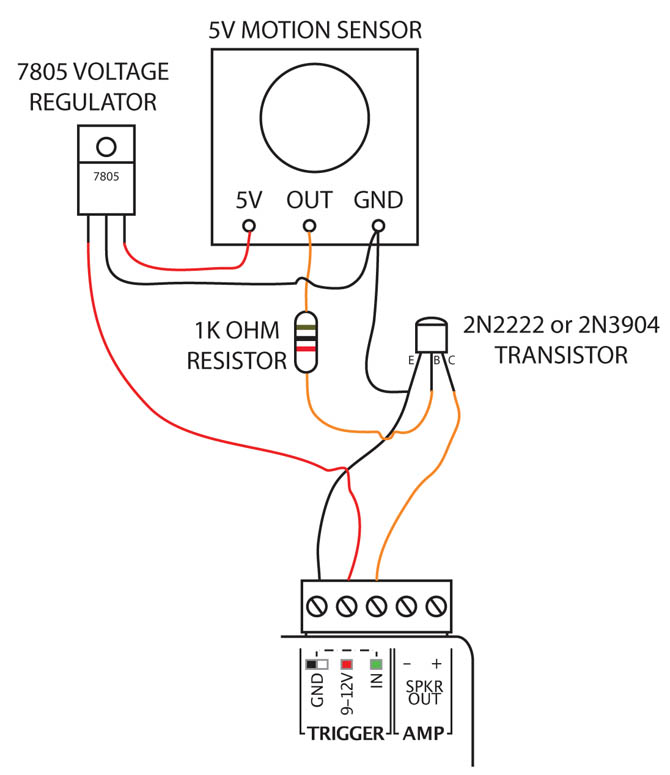

CIRCUIT FOR CONTROLLERS WITHOUT “C” TERMINAL (PICOBOO / PICOFX)

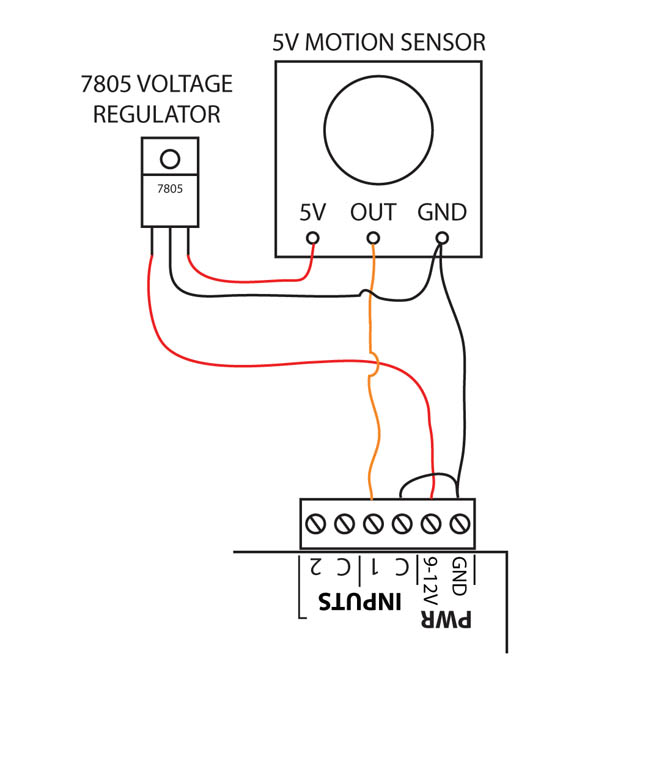

CIRCUIT FOR CONTROLLERS WITH “C” TERMINAL (BOOBOX 4 / 8 / BOOTUNES)

PARTS CAN BOUGHT FROM DIGIKEY.COM

DESCRIPTION

PART#

7805 VOLTAGE REGULATOR

L7805CV

1K OHM RESISTOR

CFR-25JB-1R0

2N2222 TRANSITOR

P2N2222AG
