High-Torque Parking Prop Motor Dimensional Drawings (MOT1P)

High-Torque Parking Prop Motor Dimensional Drawings (MOT1P)

Categories: Electric Motors

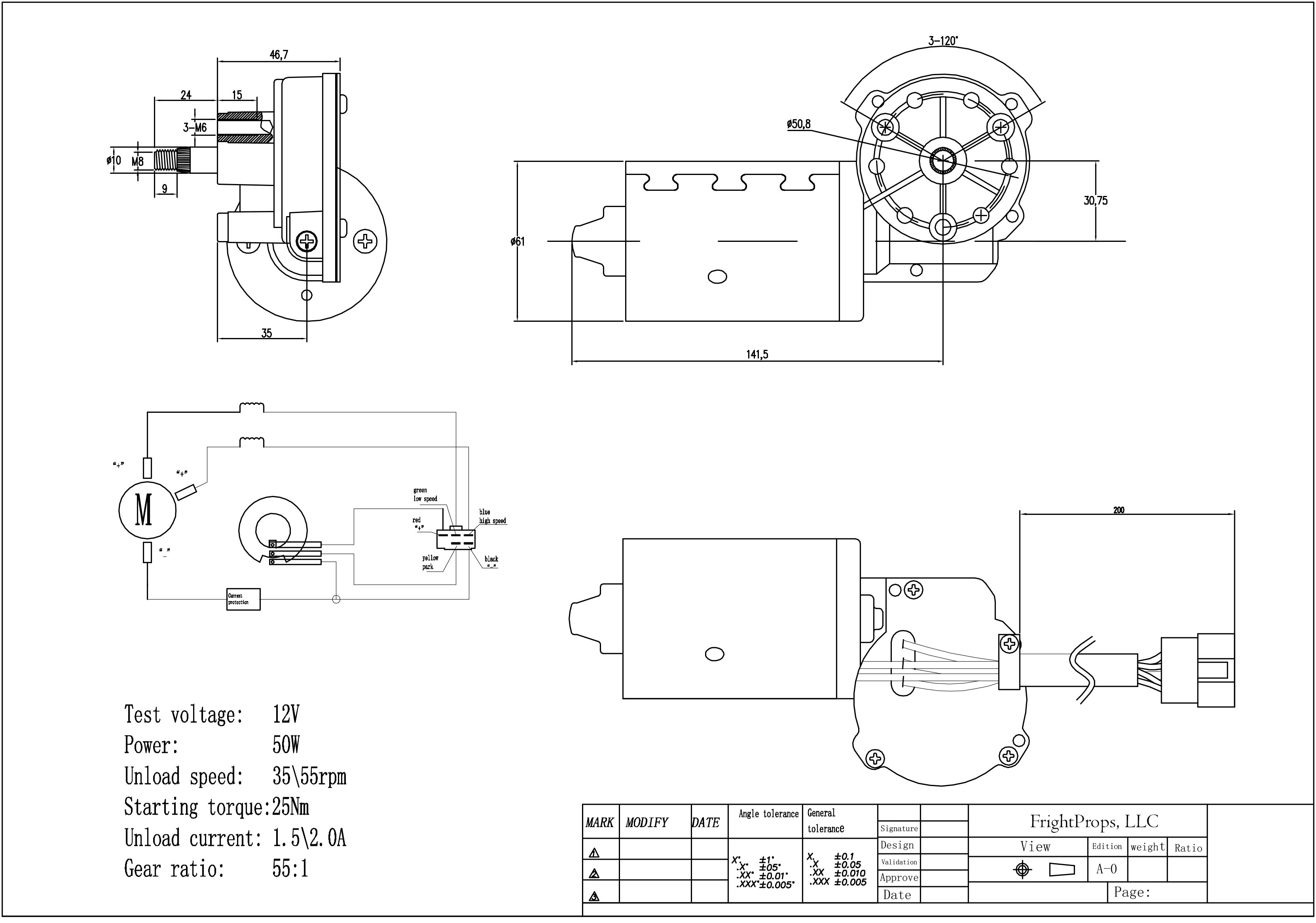

All dimensions given are in metric.

(click for image for a larger version)

Motor Shaft

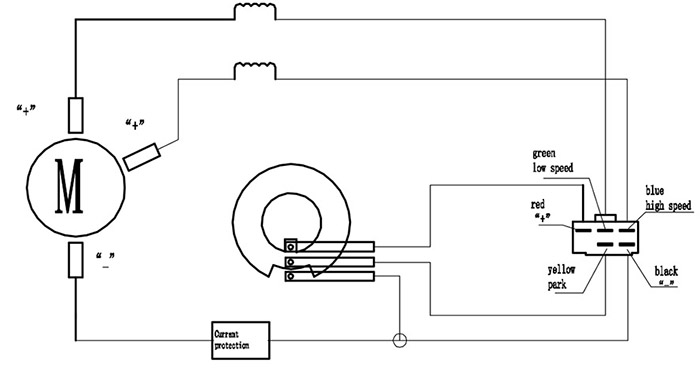

Wiring Schematic
