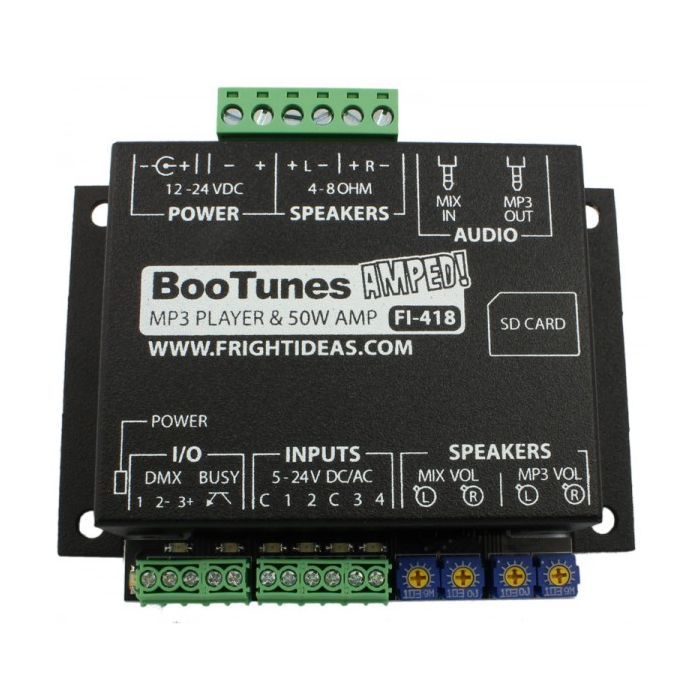

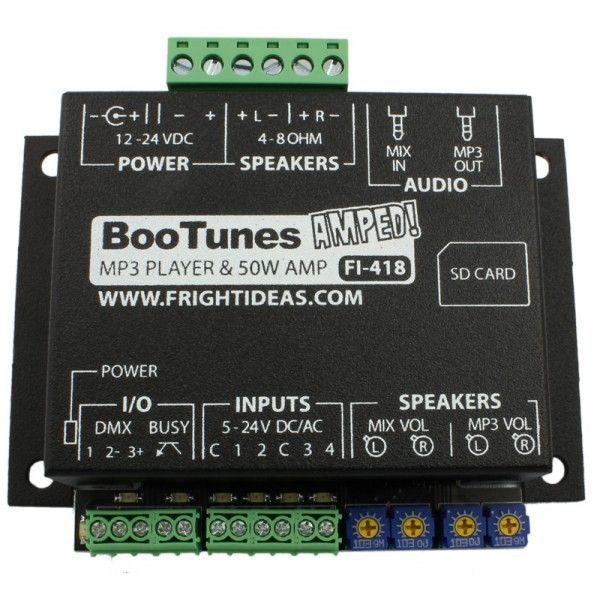

Amplifier & Mixer Input
For maximum sound quality and power efficiency, the BooTunes Amped harnesses the power of a 50 watt Class D stereo amplifier. The mixer input allows you to take advantage of the internal amplifier for other line-level audio you may need amplified as well.
To realize the full power of the amplifier you must use a 24 volt power supply capable of supplying 2.5 amps or more.
Fill your SD card with as many sounds as you want and the BooTunes Amped will start pumping them out. If you want the sounds to play in a certain sequence then just name the files appropriately. No need to copy them to the card in a certain order.
Need great audio quality? The Amped can play any MP3 file up to 256kbps. If you need to connect to an external amplifier you can use the 3.5mm stereo line-out.
BooTunes and BooBoxes can be easily chained together using DMX to have them trigger the same scenes simultaneously. Using the DMX connection means you don't have to waste the BooBox's outputs to trigger additional audio channels.
A BooTunes can even be set to act as a DMX master, triggering other BooTunes units at the same time it's triggered.
Each of the four optically-isolated inputs can be set to play a sound, loop a sound, sequence through a folder of sounds, cancel a sound, or ramp the volume. If triggered during playback, sounds can be set to interrupt the current sound or to ignore the trigger completely. Trigger pre and post delays are also available to optimize timing.
Set some inputs to fade when interrupted, pause playback, or duck the volume so you can make an announcement. There's a bunch of options available so you can customize the BooTunes Amped behavior to your needs. And there's no dip switches to fiddle with, all settings and options are easily changed by just creating folders with special names.
|Some Option Examples|
|_RESUME#||Ambient Resume - This option tells the BooTunes Amped to resume the ambient sound at the point it was interrupted, rather than starting a new sound from the beginning. The # value specifies the fade rate in seconds to fade back into the sound.|
|_FADINT#||Fade on Interrupt - Cause the currently playing sound to fade out over # seconds, rather than end abruptly, if interrupted.|
|Next and Previous Track - Turns the input into a next or previous track control.|
|Interruptible Inputs - Sets the input to allow interrupts from other inputs or it's own input.|
|_SLAVE||Slave Mode - This option will set the BooTunes Amped to act as a DMX slave to another BooTunes or BooBox.|
|_DMX###||DMX Slave - This option sets the BooTunes Amped to a generic DMX mode, and sets the DMX channel to ###.|
As with most of our other products, the BooTunes Amped is completely firmware upgradeable. Stay up to date with the latest features simply by downloading the latest firmware free from our website.
|Included Power Source||12v DC 1amp : Barrel Plug|
Can the BooTunes player be set up to play four different songs at the same time?Each BooTunes has one stereo output (a left and a right channel) and plays one file at a time.
Can I use this device to play a recorded sound based on motion detection?Yes.
Can 8 motion sensors be used with the BooTunes?Yes.
Can the BooTunes play one sound per trigger?Yes.
What are the dimensions of the BooTunes?Length 4.1” Width 2.75” Height 1.125”
