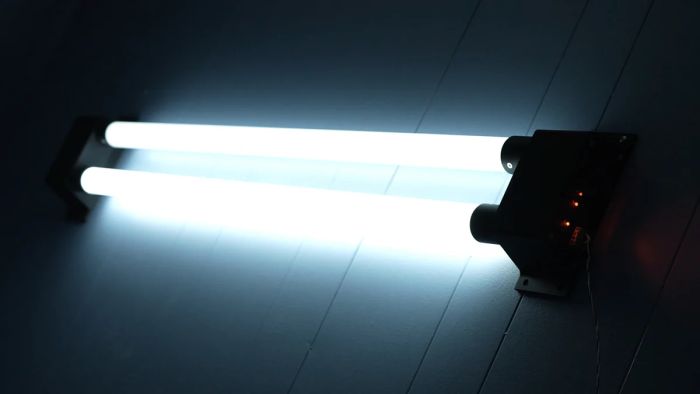

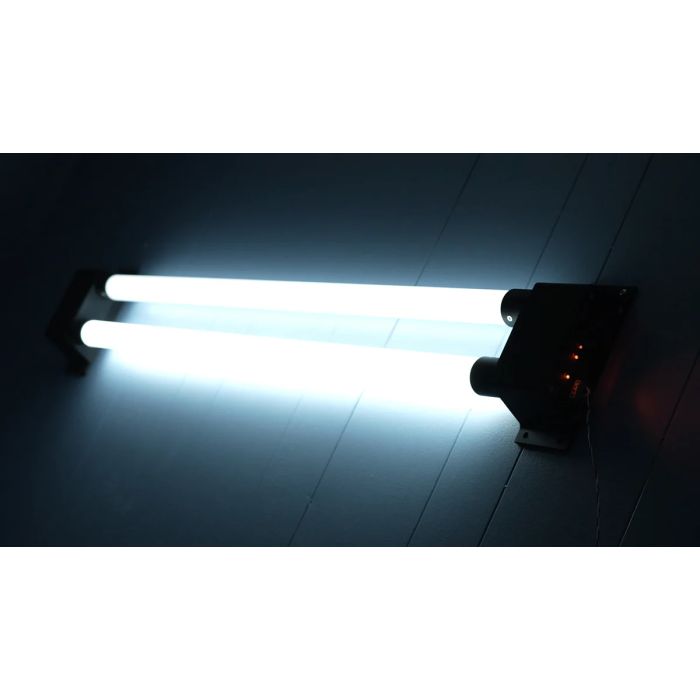

Pro Flicker: Fluorescent Light

 Dual layer technology allows effects to be programmed individually in each "fluorescent tube" as well as on the frontend affecting the operation of both "fluorescent" tubes simultaneously.  A trigger input allows remote operation of the light fixture with an external programmable prop controller or PLC.  The trigger input can also be used to externally modulate the flickering pattern of the light fixture.

The frontend flicker control consists of nine (9) total modes of operation including various brightness levels and extended ON and OFF flicker modes and can also be externally triggered or modulated.  Each individual tube has its own flicker control with a total of twenty (20) modes of operation which include varying brightness levels, electrical flickers, drop-outs, surges, and other effects.  Varying all three flicker controls can provide nearly an infinite array of different effects within a single light fixture.

Three (3) pushbuttons allow the user to cycle through the various modes available while three (3) LEDs, which can be disabled, provide visual feedback to how each flicker channel output is operating.  Internal memory allows the device to resume the previously selected output mode in the event power is lost to the device which is useful for permanent installations where a single operating mode if required continuously even when power is cycled.

Features

• Nine (9) modes of frontend flicker control
• Twenty (20) modes for each individual tube
• True non-repeating random algorithms
• White LEDs - Other colors available on request
• Three (3) pushbuttons for mode control
• Three (3) LEDs for visual display of modes
• External trigger control
• Internal DIP switches can disable LEDs
• Memory saves mode during power loss
• Operating voltage:  12VDC nominal
• Max. Load Current:  700mA
• Total length:  46"
• Flange mount for easy mounting
