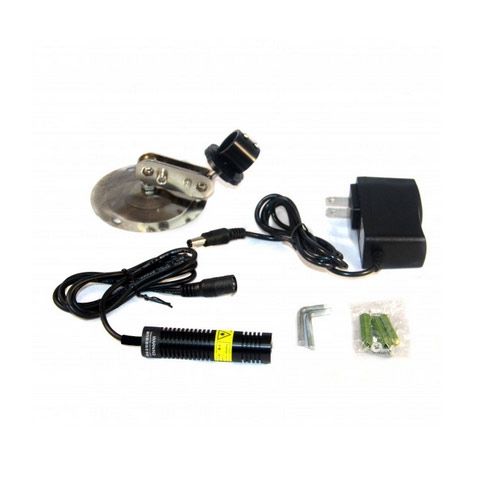

Laser Swamp - Individual Laser Module

The beam angle is 120 degrees.

Laser Swamp - Individual Laser Module - Red 5VDC

5mW / red 650nm laser module: Diameter 16mm * Body Length 68mm

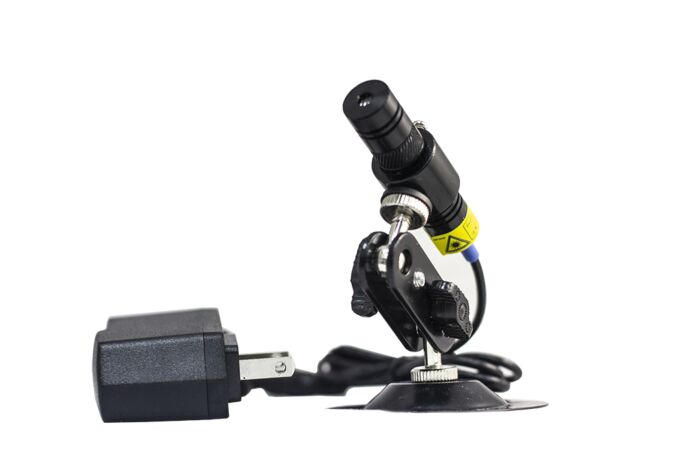

Laser Swamp - Individual Laser Module - Green 12VDC

5mW / green 532nm laser module: Diameter 18 * Body Length approx 80mm

Laser Swamp - Individual Laser Module - Blue 5VDC

5mW / blue 450nm laser module: Diameter 16mm * Body Length 68mm

HOW TO CONSTRUCT YOUR LASER SWAMP

The following are some details based on a laser swamp effect set up for a tradeshow and may be helpful in setting up your own laser swamp!

"We started with a flat black room 10' wide x 16' long. The height is non critical; the demo was 10', but it could have been lower to make it easier to decorate with materials to brush people in the face. The width of the room is more important and the laser light tends to taper in strength when refracted through the haze. This varies with the amount of haze in the room but after about 7 ft the effect become faint. We mounted 4 lasers in the corners and two in the middle of the 16' walls. These were mounted belly button high as a personal preference. You want enough height to allow the actor in the black skin suit room to work below the lasers, but you don't want to expose shorter patrons to laser light in their eyes. There were two 36" wide doors in the middle of the 10' wall sections with 8" black PVC vinyl strip material("fear flaps") to block light and minimize the haze loss. We had a small fan just off of the entrance pulling some fresh air into the room the accentuate the swirl of the haze in the lasers to make the effect appear more fluid like. We decorated the room to visually distract people and focus their attention to allow the actor to work undetected with use of an animatronic witch prop to draw peoples attention."
