Item #HB-5DB5
IN STOCK

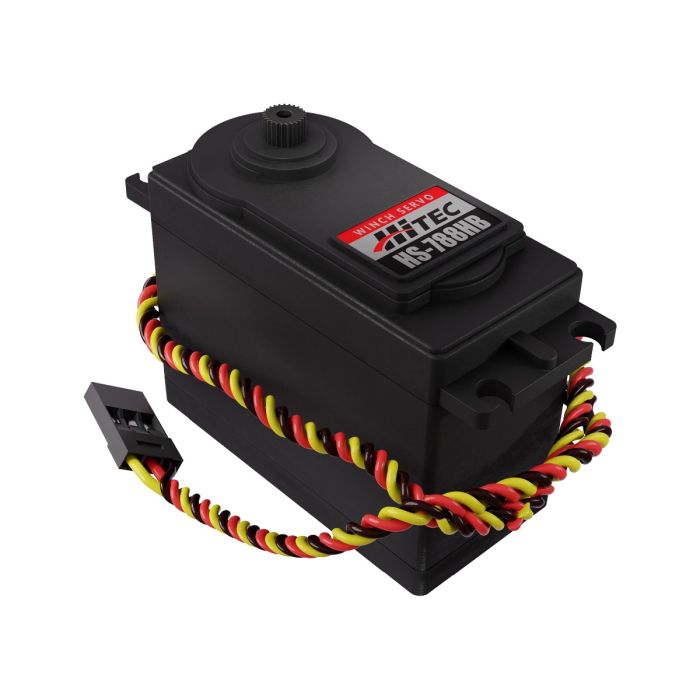

Large servo for heavy-duty prop applications.
$74.99
description
Specs
| Output Shaft Style | H25T Spline |
|---|---|
| Voltage Range | 4.8V ~ 6V |
| No-Load Speed (4.8V) | 1.68 sec/360° |
| No-Load Speed (6.0V) | 1.38 sec/360° |
| Stall Torque (4.8V) | 153 oz-in (11.0 kg.cm) |
| Stall Torque (6.0V) | 183 oz-in (13.2 kg.cm) |
| Travel per µs | 1.570°/μsec |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Current Drain - idle (4.8V) | 8mA |
| Current Drain - idle (6.0V) | 8.7mA |
| Current Drain - no-load (4.8V) | 230mA |
| Current Drain - no-load (6V) | 285mA |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 8 μsec |
| Motor Type | 3 Pole Ferrite |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearings |
| Gear Material | Karbonite |
| Wire Length | 11.81" (300mm) |
| Weight | 3.42oz (97g) |
| Wire Gauge | 22 AWG |
| Max PWM Signal Range | 600-2400μsec |
| Max Rotation | 2826° |
| Servo Size | Large |
