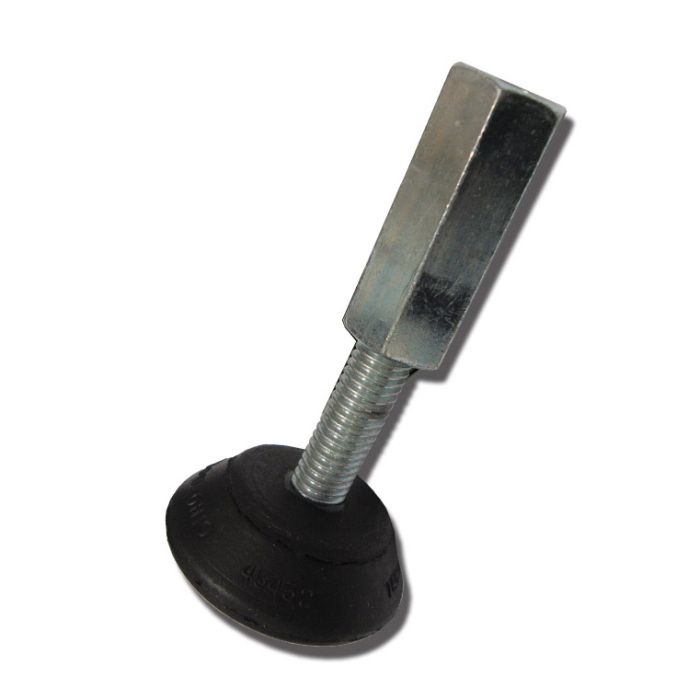

Foot diameter is 2 inches. Length from bottom of foot to top of coupling nut is 4.5 inches.
Match the thread sizes with those on your cylinder.
We have created a letter system to assist you in ordering the correct parts for our pneumatic cylinders. Go to the Cylinder Category and note the letter code assigned to the cylinder. Match that letter code to the cylinder part selection drop down selection list.
