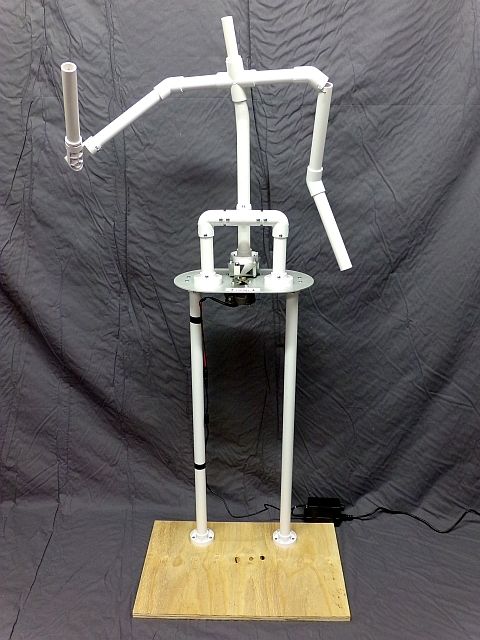

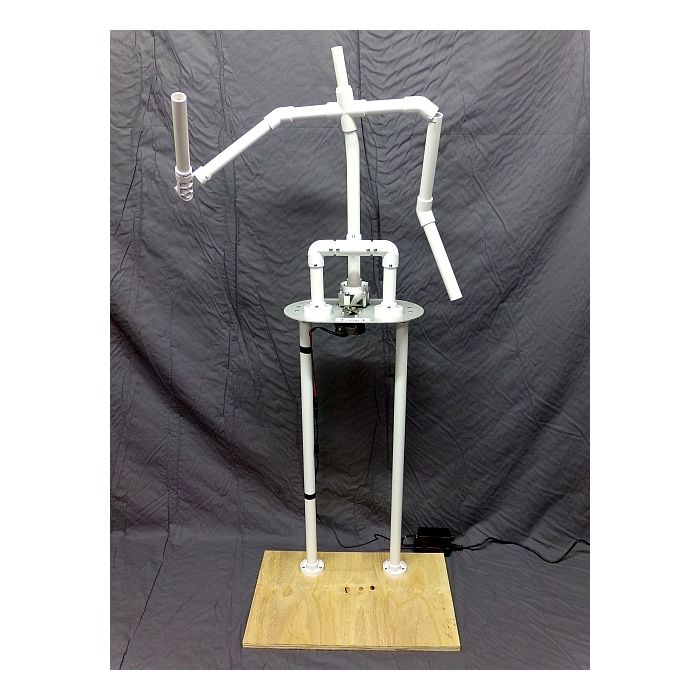

Animated Watchman Kit (Basic Kit)

Kits now include (4) Spider Joints allowing for completely adjustable arms.

Spine support assembly has been redesigned to simplify assembly and increase support.

Main drive arm has been replaced with one made out of UHMW plastic for quieter operation and reduced wear.

Movement rides on a 3 inch steel lazy Susan bearing assembly and the drive arm features a nylon roller for low friction. The included PWM speed controller allows you to adjust his speed to exactly where you want it.

Please read the product description completely before ordering. If you have any additional questions, please feel free to contact us.

You can view the complete plans for this kit HERE

We designed this kit to allow you to build your own custom animated prop without all of the hassle of chasing down a bunch of parts. With minimal care, this kit should last you a very long time. Should it ever need repair, most of the parts can be sourced locally. We will also provide support and parts for any kit that we sell.

Items included in the Basic Kit:

• (1) Precision machined aluminum waist platform (with 12 volt wiper motor)
• (2) UMB-1 Universal Mounting Bases
• (1) ST-1 1 inch PVC slip-cross fitting
• (1) 1 inch PVC cross fitting
• (1) 4 inch x 1/2 inch PVC neck pipe and reducer
• (4) SJ-1 Spider Joint fittings
• (2) 1 inch PVC 90 degree elbow fittings
• (2) Spine Brace Crossbars (F)
• (38) Self drilling screws
• (8) Wood Screws
• (1) Tube of silicone grease
• (1) 12 volt 5 amp power supply with PWM speed controller

What will I need to build this prop kit as shown here?

• (1) 24" x 15" x 3/4" wood base
• (13) Feet of 1 inch schedule 40 PVC pipe

All of the screws and hardware needed are included!

Height of kit will be about 6 feet tall when assembled depending on the head you choose.

Tools needed to complete this build:

• Tape measure
• Pencil
• Hacksaw or PVC cutter
• Cordless drill
• Phillips screwdriver
• Needle nose pliers
• Rubber mallet
