12vDC or 24vDC Activated Single Pull Double Throw 30-Amp Relay

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 12vDC or 24vDC Activated Single Pull Double Throw 30-Amp Relay
  • 12vDC or 24vDC Activated Single Pull Double Throw 30-Amp Relay

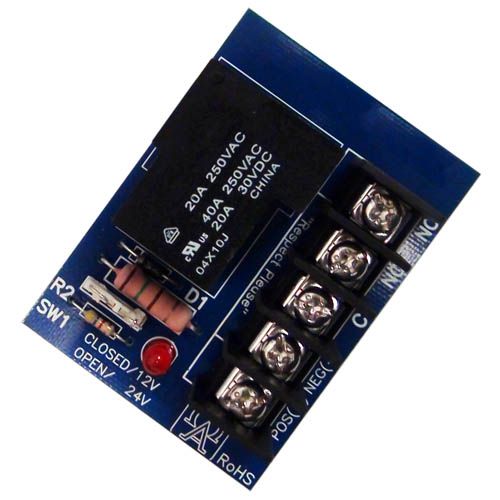

12vDC or 24vDC Activated Single Pole Double Throw 30-Amp Relay

SKU: HB-1AFD
When DC power is supplied this relay can switch one AC or DC device on and off as well as providing contact closure and flip-flop operations.

In Stock
$24.99

Description

Relays help complete the prop control puzzle by providing AC to DC and DC to AC conversions as well as providing contact closure and flip-flop operations.

  • 12VDC or 24VDC operation.
  • Current Draw: 95mA.
  • Contacts: SPDT form “C”
  • Rated: 30 amp / 28VDC
  • Rated: 30 amp / 120VAC
  • Rated: 30 amp / 277VAC
  • Dimensions (approximate): 2”W x 2.75”L x 0.75”H


Ship Weight: 0.1 pounds
