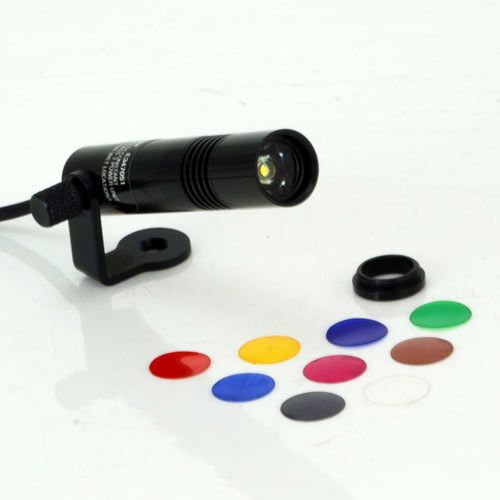

Precision Alpha - Micro Theatrical Pinspot

Precision Alpha - Micro Theatrical Pinspot

The Precision Alpha is an ultra-compact LED pinspot designed for space constrained applications.

In Stock

As low as: $60.00

Price as configured: $0.00

Additional Product Options

* Required Fields

Price as configured: $0.00


“Bye Bye Birdie” is the slogan for the Precision Alpha, a compact pinspot with comparable output to PAR16 “Birdies” at a fraction of the size and power consumption. The Precision Alpha is an ultra-compact LED pinspot designed for space constrained applications. This point source luminaire gives the user an endless selection of colors and beam angles using theatrical filters. Softer and more natural colors are achievable from filters compared to light emitted from a pure colored LED. As with all other Gantom luminaires, the Precision Alpha is ruggedly designed to last in both indoor and outdoor environments. Internal driver circuitry ensures constant output even when input voltages fluctuates and extends the fixture life beyond 50,000 hours.


  • Reconfigurable with gel filters (included)
  • Perfect for space constrained applications
  • 1W LED with 95% energy savings compared to 20W halogen lamp
  • Low voltage and minimal heat for improved safety over incandescent sources
  • Internal constant current driver gives highly efficient and consistent output
  • Dimmable using PWM power input from external constant voltage dimmer (10%-100%)
  • Easy installation and reconfiguration
  • Dual polarity input
  • Minimal maintenance required with over 50,000 hour lamp life
  • Indoor and outdoor use

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Museums displays (wall mounted artwork and display cases)
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces
  • Architectural accent lighting

Max wattage: 1.5W
Input voltage: 9-15VDC (12VDC nominal)
Current draw: 125mA @ 12VDC
Power supply: for use with class 2 transformer or battery
Beam angle: 13 degrees
Field angle: 28 degrees
Ingress Protection: IP65
Material: Anodized aluminum
LED: Cree XLamp XP-E
Certifications: UL and CE
Power connector: 2.1mm DC jack with screw terminal adapter

Cool White Output
  • Total Lumen Output: 78.8 Lumens
  • Correlated Color Temperature (CCT): 6250 K
  • Color Rendering Index (CRI): 73.36
Distance Center Beam Beam Width
1.0m (3.3ft) 843lx (78.3fc) 0.2m (0.7ft)
2.0m (6.6ft) 219lx (20.4fc) 0.5m (1.6ft)
3.0m (9.9ft) 97lx (9.0fc) 0.7m (2.3ft)

Warm White Output
  • Total Lumen Output: 61.9 Lumens
  • Correlated Color Temperature (CCT): 2962 K
  • Color Rendering Index (CRI): 79.7
Distance Center Beam Beam Width
1.0m (3.3ft) 621lx (48.0fc) 0.2m (0.7ft)
2.0m (6.6ft) 160lx (12.3fc) 0.5m (1.6ft)
3.0m (9.9ft) 70lx (6.5fc)) 0.7m (2.3ft)


Product Faqs

Ask a Question

  • How many Darklight Precision Alpha's can you run from one DarkBox Flicker?
    You can run up to 8 Darklight Precision Alpha's from one DarkBox Flicker.
  • Are Darklight LED products UL Listed?
    Yes, Darklight LED products are UL Listed. Please note that the "Nano" spots are not a Darklight product and are not UL Listed.
  • What is PWM?
    PWM stands for “Pulse Wave Modulation”. The technology is used to control dimming with LED lights. In some cases you can dim LED lights by reducing voltage but a better way (and the only way with some LEDs) is to keep the voltage constant but “pulse” it. That’s what PWM does… it pulses more frequent (bright) or less frequent (dim) 12V voltage to the LED. We offer several controllers based on PWM technology:


    Dimmer Controller for LED lighting

    DarkBox Flicker:


  • Can you wire a Precision Z, Precision Alpha, or Nano directly to a PicoBoo?
