Cylinder Parts
We have created a letter system to assist you in ordering the correct parts for our pneumatic cylinders. Go to the Cylinder Category and note the letter code assigned to the cylinder. Match that letter code to the cylinder part selection drop down selection list.
You can also check our Cylinder Dimensions and Thread Size Reference before ordering parts for your cylinder. If you purchased your cylinder from another manufacturer you can Contact Us with the part number and we can identify it in our extensive library.
-
Clevis Mounting Bracket
SKU:0582-0131Price From: $2.99This bracket is for mounting a clevis to. Clevis pin goes through provided hole. Two mounting holes on the base provided for you to bolt or screw bracket to coffin lid, box lid, etc. -
Cylinder Mounting Nut
SKU:0582-0010Price From: $0.35Mounting nuts allow you to mount a cylinder from the top. Be sure to match the mounting nut thread size to that of the cylinder you will be using. -
-
Foot Bracket
SKU:0582-0051Price From: $3.15Provides a fixed mount for an air cylinder. Does not allow the cylinder to pivot back and forth. Universal Mount cylinders can use them on both the top and bottom, Nose Mount cylinders can only use them at the top. -
Heavy Duty Rubber Rod Foot with Shaft
SKU:0582-0120$22.50Includes a heavy duty rubber bumper foot mounted to a steel shaft with a coupling nut to attach to rod end. -
Heavy Duty Rubber Rod Foot without Shaft
SKU:0582-0162Price From: $5.99Use a rod bumper to mount to the top of a cylinder shaft. Rod can then be used to push against a surface. Applications could include, pushing a crate or barrel up and down, etc. -
Jam Nut
SKU:0582-0013$0.45Jam nuts are slightly thinner than normal nuts. Usually two are used together to sandwich a washer or some other mount on top of a cylinder. -

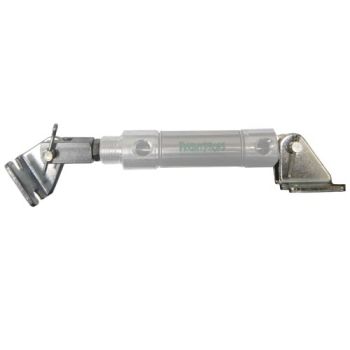

Mounting Kit for our 1-1/2" Bore Cylinders
SKU:0758-1500-MK1Starting at: $4.99
Take the guesswork out of locating the right mounting parts for your 1-1/2" bore universal mount cylinder! -
Mounting Kit for our 1-1/6" Bore Cylinders
SKU:0758-1062-MK1Starting at: $2.99
Take the guesswork out of locating the right mounting parts for your 1-1/6" bore universal mount cylinder! -
Mounting Kit for our 3/4" Bore Cylinders
SKU:0758-0750-MK1Starting at: $2.99
Take the guesswork out of locating the right mounting parts for your 3/4" bore universal mount cylinder! -
Pivot Bracket - One Piece with Pin
SKU:0776-0380Price From: $5.99Provides a bottom mount for an air cylinder. Allows the cylinder to pivot back and forth. One piece design made from steel (weldable). Only for use with Universal Mount cylinders. Comes with pin to insert through end of cylinder. -
Rear Pivot Mount - Two Piece Mounted to Plate
SKU:0582-0016Price From: $15.99Provides a bottom mount for an air cylinder. Allows the cylinder to pivot back and forth. New design made from weldable steel -
Rear Pivot Mount - Two Piece with Pin
SKU:0582-0342Price From: $5.99Provides a bottom mount for an air cylinder. Allows the cylinder to pivot back and forth. Two piece design made from steel (weldable). Only for use with Universal Mount cylinders. Comes with pin to insert through end of cylinder. -
Rear Pivot Mount - Two Piece without Pin
SKU:0776-0384Price From: $5.49Provides a bottom mount for an air cylinder. Allows the cylinder to pivot back and forth. Two piece design made from steel (weldable). Only for use with Universal Mount cylinders. Comes with pin to insert through end of cylinder. -
Rear Pivot Mount with Side Mount Bracket
SKU:0582-0201Price From: $22.99Provides a bottom mount for an air cylinder. Allows the cylinder to pivot back and forth. This one comes with a side mount bracket installed for applications such as mounting to the side of a box or coffin to open the lid. Four holes are provided in bracket for mounting. -
Rod Bumper
SKU:0582-0097Price From: $5.99Use a rod bumper to mount to the top of a cylinder shaft. Rod can then be used to push against a surface. -
Rod Clevis
SKU:0582-0021Price From: $5.99Use a rod clevis to mount to the top of a cylinder shaft. These allow for some swivel movement. -
Rod Coupling Nut Bolts
SKU:0582-0075Price From: $0.50These bolts are 1in. long and screw into our Rod Coupling Nuts. Match the bolts thread size to that of the Rod Coupling Nut thread size. -
Rod Coupling Nuts
SKU:0582-0074Price From: $2.32Use a Rod Coupling Nut to mount to the top of a cylinder rod. Screw onto rod then screw a bolt into the other end of the Coupling Nut. The bolt can then hold an item. Match the coupling nut thread size to that of the cylinder rod thread size. -
Spherical Rod End
SKU:0582-0022Price From: $10.99Use a spherical rod end to mount to the top of a cylinder shaft. These allow for some swivel movement.
