Keypad Input Trigger

Keypad Input Trigger

SKU: 0425-KEY

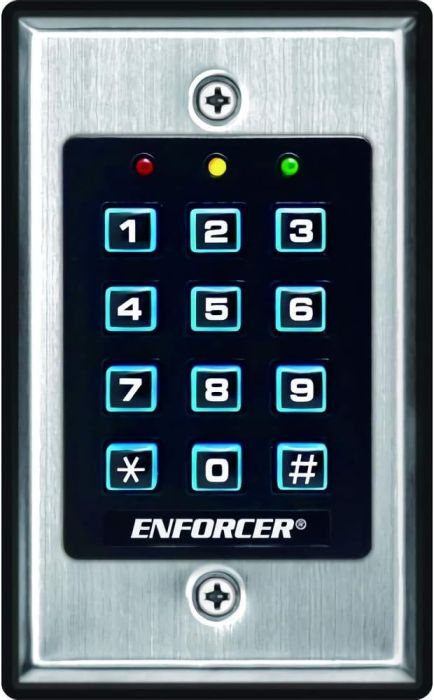

Fully controllable keypad activates a relay when the correct code is entered. Directly activate electronic components, or trigger a PicoBoo, BooBox or other prop controller.

In Stock

From: $59.99

To: $109.98


Price as configured: $0.00

* Required Fields

Price as configured: $0.00

Description

  • 1 Master Code 4-8 digits
  • 1 Super User Code 4-8 digits
  • 1000 User Codes 4-8 digits
  • 50 Visitor Codes 4-8 digits
  • Easily delete individual user codes
  • Ouput Mode and Timing up to 99,999 seconds or toggle
  • Real-Time Clock
  • Output #1 Auto-Disable Time
  • Wrong-Code Lock-up: 60 second lockout, 15-min lockout, Off
  • User Code Entry Mode: Auto (no #, same length codes) or Manual (#, variable length codes)
  • On/Off Keypad Sounds
  • Output Relay Activation Sounds: No beeps, 1 second beep, 2 short beeps
  • Egress Output with multiple features allows users to exit without entering a code
  • DAP Code (no Jumper)
  • System Restore
  • 12-24 VAC/VDC
  • Current draw at 12VDC: 15mA Standby, 30mA Keypress, 55mA Output 1 active, 90mA Total max current draw
  • #1-Form C relay output 1A@30VDC, Tamper 50mA@24VDC
  • Inputs Egress N.O. Ground
  • Operating Temperature -4F to 158F
  • Operating Humidity 5-95% Non-condensing
  • Dimensions including back box: 4 5/8" x 2 7/8" x 1 1/2", 6 ounces
  • Includes: Back Box, Diode, Manual, 2 Installation Screws and 2 Mounting Screws.
