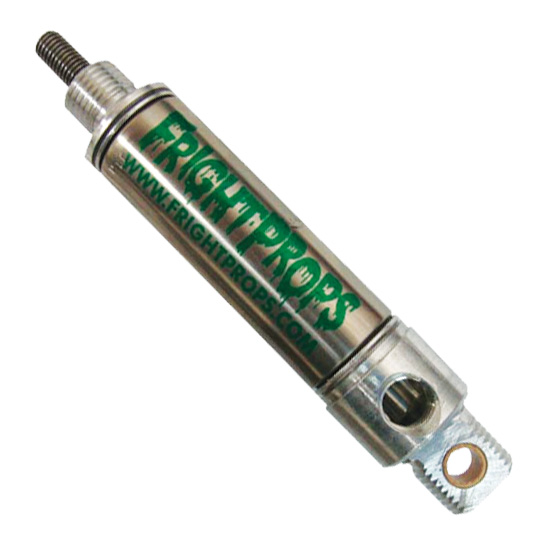

Single-Acting Non-Rotating Universal Mount Pneumatic Cylinders

Most of the cylinders in this section are not stocked on the shelf and so we build them when ordered and take up to 9 days to ship. If you need cylinders quickly check out our MOST COMMON AIR CYLINDERS which we stock and are ready to ship.

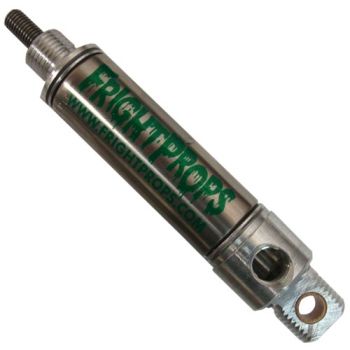

5/16 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: .07push/.07pull
- Port Size: #10-32"npt
- Shaft Threads: #5-40
- Mounting Threads: 1/4-28
from $
23
85
7/16 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: .15push/.15pull
- Port Size: #10-32"npt
- Shaft Threads: #10-32
- Mounting Threads: 3/8-24
from $
23
20
9/16 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: .25push/.25pull
- Port Size: #10-32"npt
- Shaft Threads: #10-32
- Mounting Threads: 7/16-20
from $
23
90

3/4 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: .44push/.44pull
- Port Size: 1/8" NPT"npt
- Shaft Threads: 1/4-28
- Mounting Threads: 1/2-20
from $
24
70
7/8 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: .60push/.60pull
- Port Size: 1/8" NPT"npt
- Shaft Threads: 1/4-28
- Mounting Threads: 5/8-18
from $
25
80
1 1/16 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: .89push/.89pull
- Port Size: 1/8" NPT"npt
- Shaft Threads: 5/16-24
- Mounting Threads: 5/8-18
from $
27
50

1 1/4 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: 1.23push/1.23pull
- Port Size: 1/8" NPT"npt
- Shaft Threads: 7/16-20
- Mounting Threads: 3/4-16
from $
38
95
1 1/2 Bore Single-Acting Non-Rotating Universal Mount Cylinder
- Power Factor: 1.77push/1.77pull
- Port Size: 1/8" NPT"npt
- Shaft Threads: 7/16-20
- Mounting Threads: 3/4-16
from $
43
90
