Item #HB-1ACF
OUT OF STOCK

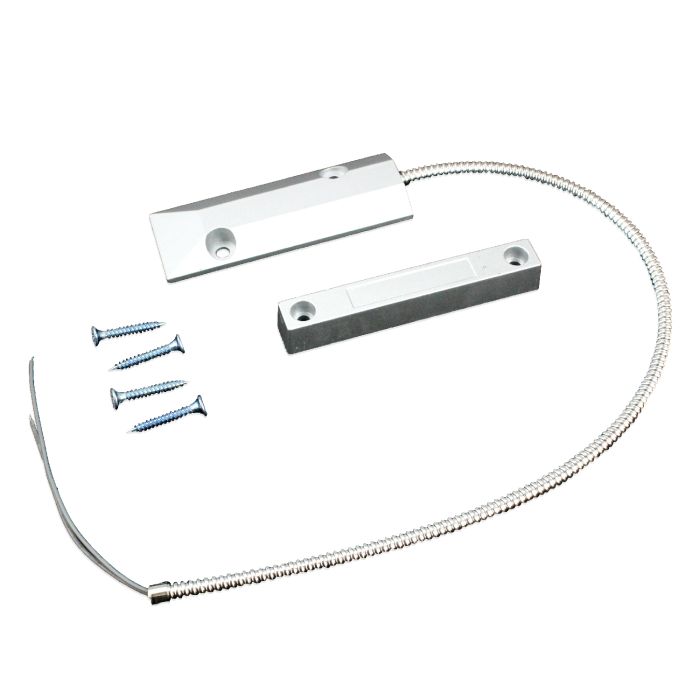

Triggers your prop or controller when the two pieces come in contact with each other. This stainless steel unit is perfect for when you need a heavy-duty proximity sensor (i.e.: when used with a large prop or a heavy door - like a garage door)
$24.99
description
NOTE: Current units have 3 wires. The longer wire is Common. The other two are not marked, but they are Normally Closed and Normally Open. You will have to experiment to determine which is which.
NO NC Door Waterproof Sensor Switch Zinc Alloy Alarm Magnetic Reed Switch Detector Sensor Roller Shutter Garage Door
Features:
- Magnetic Reed Switch
- Dry Contact Output: NO,NC, COM
- Zinc alloy housing, sliver grey
- Cable Material: 1007UL #22AWG
- 370mm flexible Steel goose-neck cable protector conduit + Additional 100mm extra-long cable
- 10W/100VDC/0.5A in MAX
- Action Distance : 45~60mm
- Weight : 0.24kg
NO NC Door Waterproof Sensor Switch Zinc Alloy Alarm Magnetic Reed Switch Detector Sensor Roller Shutter Garage Door
