Flicker 3.0 Multi-Effect Light Controller

A single pushbutton allows the user to cycle through a wide array of output light patterns including ember, candle, and flame flicker modes, flashing and strobe effects, as well as simulated neon and electrical fixture flicker. Steady state brightness modes are also available. Internal memory allows the device to resume the previously selected output mode in the event power is loss to the device. This is also useful for permanent installations where a single operating mode is required continuously.

Features:

• For use with LEDs (dimmable types)

• Incandescent and halogen lights

• Single button operation

• Onboard LED mirrors output mode

• Memory saves mode during power loss

• True non-repeating random algorithms

• Operating Voltage: 7VDC to 16VDC

• Max. Load Current: 3A (5A optional)

• Reverse Voltage Protection

• Flange mount for easy installation

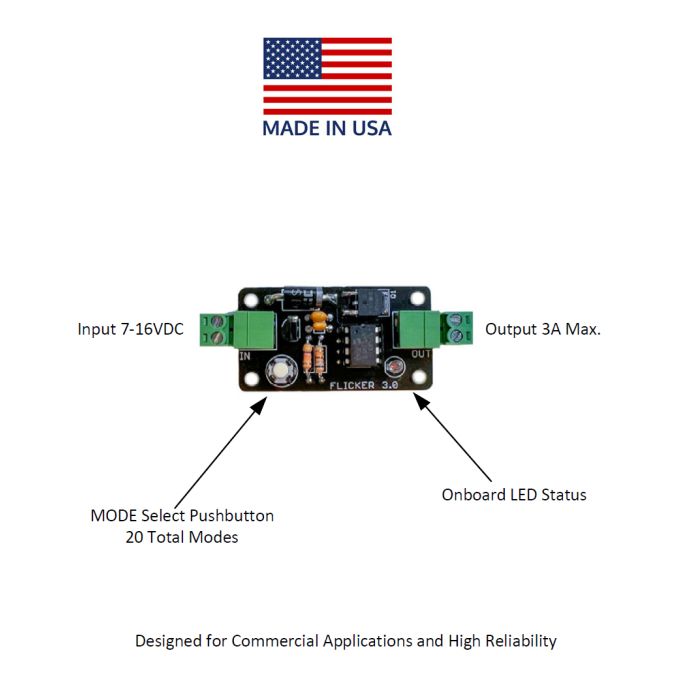

• Removable terminal blocks Connection Diagra
