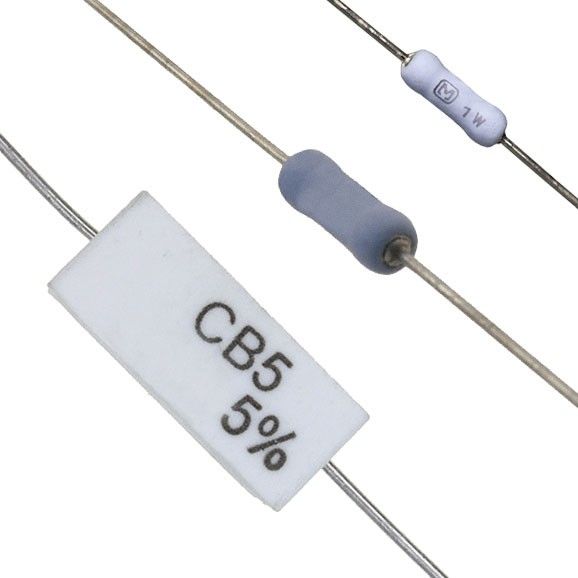

LED Resistors

LED Resistors

SKU: 0706-LED
Use a resistor if you need to connect a 12 volt LED to a BooBox running at 24 volts.

In Stock

From: $0.29

To: $0.99


Price as configured: $0.00

* Required Fields

Price as configured: $0.00

Description

Most LED lights are designed to run at 12 volts. If your BooBox is running at 24 volts, you usually have to use a relay and separate power supply if you want to control 12 volt LEDs. Using a resistor, you can connect these LED lights directly to the solid-state outputs of a BooBox and forget about the extra power supply.

Important!
You must choose the resistor based on the current draw of your LED, and you must use one resistor per LED. See the list below for some of the common lights.

100 Ohm 5 Watt Resistor
For LEDs that draw 120mA at 12 volts

  • Darklight Precision Z
  • Darklight Precision Alpha

150 ohm 2 Watt Resistor
For LEDs that draw about 80mA at 12 volts

  • Minispotlight.com Faux Bulb
  • Minispotlight.com High Output Mini barrel Spotlight

220 ohm 2 Watt Resistor
For LEDs that draw about 50mA at 12 volts

  • Darklight Precision X

390 ohm 2 Watt Resistor
For LEDs that draw about 30mA at 12 volts

  • Minispotlight.com Mini barrel Spotlight

560 ohm 1 Watt Resistor
For LEDs that draw about 20mA at 12 volts

  • FrightProps Nano Spots

1100 ohm 1/2 Watt Resistor
For LEDs that draw about 11mA at 12 volts

  • Darklight Precision Y
