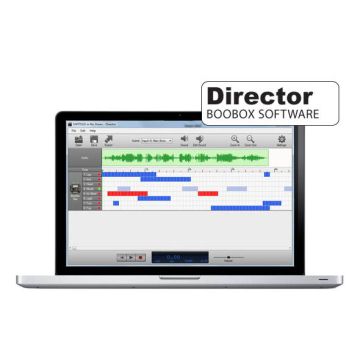

The FlexMax is easily programmed using our free Director software. Create even the most complex shows with just your mouse and keyboard. Director will save your show to an SD card so it can be uploaded to the BooBox.
If you'd like to program in real-time, the Director Connect dongle will allow you to connect your PC to the BooBox so Director can animate it live.

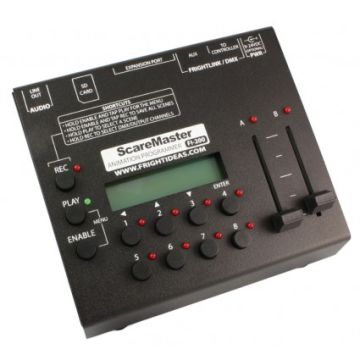

If computers aren't your friend, or you want the best of both worlds, use our legendary ScareMaster real-time programmer. With the ScareMaster you can animate complex scenes in real-time without being tethered to a computer. Entire shows can be saved to the ScareMaster's SD card for backup or cloning.

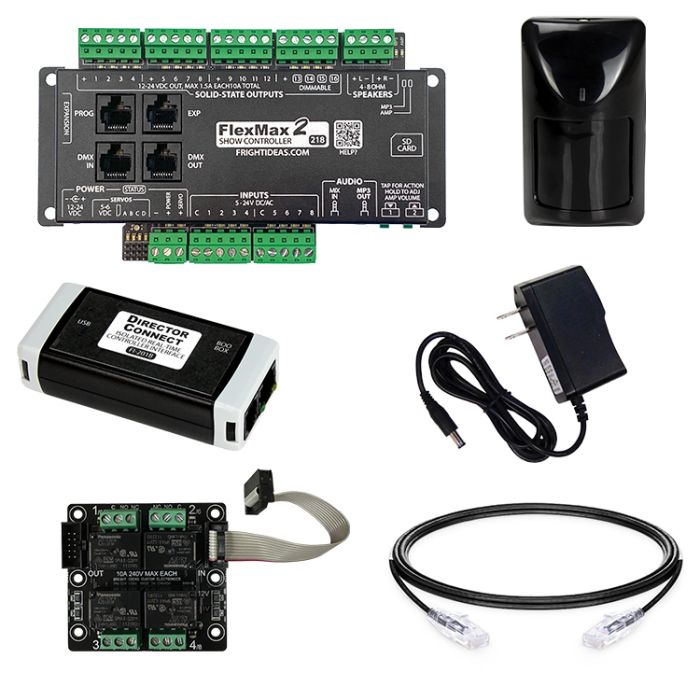

The FlexMax can be purchased in 4, 8, or 16 output models. All outputs are solid-state so they can control 12 or 24VDC loads without wear and tear. To control high voltage or current loads a relay must be used.
Amplifier & Mixer Input
For maximum sound quality and power efficiency the FlexMax harnesses the power of a 50 watt Class D stereo amplifier. If that's not enough for you, the line-out can be used to connect to even larger amplifiers. The mixer input allows you to take advantage of the internal amplifier for other line-level audio you may need amplified as well.
To realize the full power of the FlexMax's amplifier, you must use the 24 volt 5 amp power supply.
Set the scene for your high-end props and scenes by adding the ability to control popular stage lighting, strobes, and foggers. The FlexMax makes it easy to control all of them while keeping them in sync with your prop’s animation. Adding DMX devices is as simple as linking them using DMX cables, which means they don't use up any of your solid-state outputs.
The FlexMax can currently output up to 128 DMX channels.
No need to waste valuable outputs triggering an external audio device. The FlexMax’s built-in MP3 player lets you playback up to 8 different CD quality audio tracks for each scene. Need even more audio channels? Link the FlexMax to our BooTunes using the DMX connector so you don't waste any outputs.
Want the ambient sounds a little quieter than the scare sounds? The FlexMax has independent volume controls for each channel and scene. This allows you to quickly adjust the volume on a scene by scene basis without any sound editing.
The FlexMax has eight optically-isolated trigger inputs. Inputs can be used to trigger scenes, different length shows for busy nights, or even as emergency stops. Pre and post-delays are also available for each trigger, as well as a timer mode to set the prop off on a recurring schedule.
The most common triggers are PIR motions sensors, beam sensors, hand triggers, and pressure mats. Our selection of triggers can be seen here.
Up to 8 solid-state outputs will control 12 or 24VDC devices - a perfect match for most industry standard relays and solenoids. Solid-state outputs are very reliable as they have no moving parts to wear out.
Please note that solid-state outputs cannot control AC or high-current loads directly, a mechanical or solid-state relay must be used.
If you want to control more than one or two AC or high-current loads, check out our BooBox Output Accessories. We offer relay boards and AC relay packs that start working as soon as you plug them into the BooBox's expansion port.
Please note that these output accessories do not add more outputs to a BooBox, they simply offer a convenient way to control different types of loads. For example, output 1 on the expansion port will turn on when output 1 on the BooBox is activated. You can connect both of the outputs to different devices, as long as you don't mind them both turning on at the same time.
Two servo outputs are available to drive standard RC servos. Great for accurately controlling the eyes or mouth of an elaborate prop. Servo position is controlled using the ScareMaster's sliders or analog lines in our Director software.
Standard and wide-range servos are both supported.
The BooBox FlexMax can be powered by a 12 or 24 volt DC power supply. The voltage you choose to power your FlexMax is the voltage it will send out of its solid-state outputs.
For more information on selecting a power supply please read here.
Ambient and Scare Modes
The Ambient mode is used to build anticipation of the scare. While the FlexMax is not scaring, it is by default in ambient mode. Program this mode with what you want the patrons to see and hear as they approach the scare - a little foreshadowing of the terror to come.
Multiple ambient scenes can be programmed and the FlexMax will automatically cycle through them after each scare.
What is the maximum allowed amp draw from the servos?The total current of the 2 servos installed on the FlexMax must not exceed 0.75A total.
Can the BooBox Flex control a strobe light?A simple way to control a strobe light with the BooBox is to use a relay to turn it off and on. If you are only controlling one strobe light you can use the BooBox Single Relay Board or if you want to control more than one, or control other high-voltage devices you can use the BooBox Quad Relay Board
How many outputs does the BooBox Flex Max starter kit come with.It comes with 16-outputs.
Can this controller power a 12V DC solenoid valve?Yes, when this controller is powered by a 12V DC power supply it will provide power to 12V DC devices. If powered by 24V DC it will provide power to 24V DC devices.
How long can the BooBox run animation up to?It can hold 8 scenes in ambient, and 8 more in each of the 8 input folders. Each scene can be up to 30 minutes long. Scenes can be stitched together so they play one after another if needed. So technically it can play 72 x 30 minute long scenes.
How do you trigger the BooBox Flex every 10 mins?Set the Timer to 10 minutes. You can find it under show settings. That will trigger the Input1 scene every 10 minutes.
How do you reset the BooBox Flex to remove all programs?When you export a show to the Flex using Director, it erases itself before it imports the new show. If you are using a ScareMaster, go into the Menu, scroll down to BooBox Setup, then choose Factory Reset.
